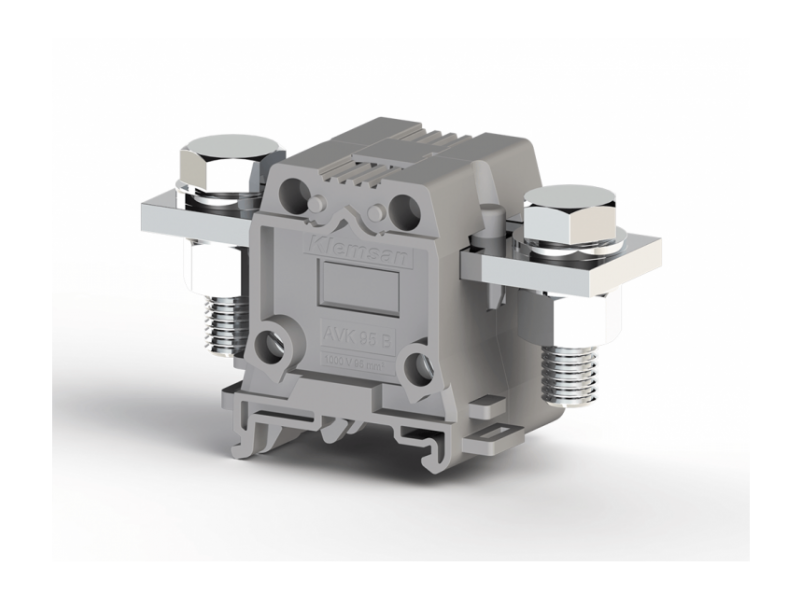

Klemsan 95mm2,Hexagon bolt connected,ring type single deck feed through terminal block,Insulation material PA,Grey, AVK 95B; 304300
Klemsan AVK 95B (304300) industrial terminal block with hexagon bolt and ring-type connection. Supports conductors up to 95 mm². Made of durable PA insulation,...
VAT-exclusive price: 1.600,89 |
VAT-inclusive price: 1.921,06 |
Klemsan AVK 95B (304300) industrial terminal block with hexagon bolt and ring-type connection. Supports conductors up to 95 mm². Made of durable PA insulation, grey color. Maximum voltage up to 1000V. Available in 9 other colors. Suitable for high current systems, distribution panels, and industrial automation.
| General Product Information | |
|---|---|
| Insulating material | PA |
| Flammability class acc. to UL 94 | V2 |
| Packing Unit | 4 |
| Weight (g) | --- |
| Dimensions | |
| Width | 40 mm |
| Length | 90 mm |
| Height (MR 32) | 58.5 mm |
| Height (MR 35x7.5) | 54 mm |
| TSE / CE Technical Data | |
| Nominal Voltage | 1000 V ~ |
| Nominal Current | 232 A |
| Cross Section | 95 mm² |
| Norm | EN 60947-7-1 |
| VDE Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | --- |
| VDE Norm | --- |
| UL / CSA Technical Data | |
| Nominal Voltage | --- |
| Nominal Current | --- |
| Cross Section | --- |
| ATEX Technical Data | |
| Nominal Voltage | -- V ~ |
| Nominal Current | --- |
| Cross Section | --- |
| Connection Data | |
| Minimum solid strand cross section | 95 mm² |
| Maximum solid strand cross section | 95 mm² |
| Minimum fine strand cross section | 95 mm² |
| Maximum fine strand cross section | 95 mm² |
| AWG Conductor Range | 3/0 / 95 mm² |
| Connection Type | screw / vidalı |
| Insulation Stripping length | --- |
| Tightening torque | --- |
