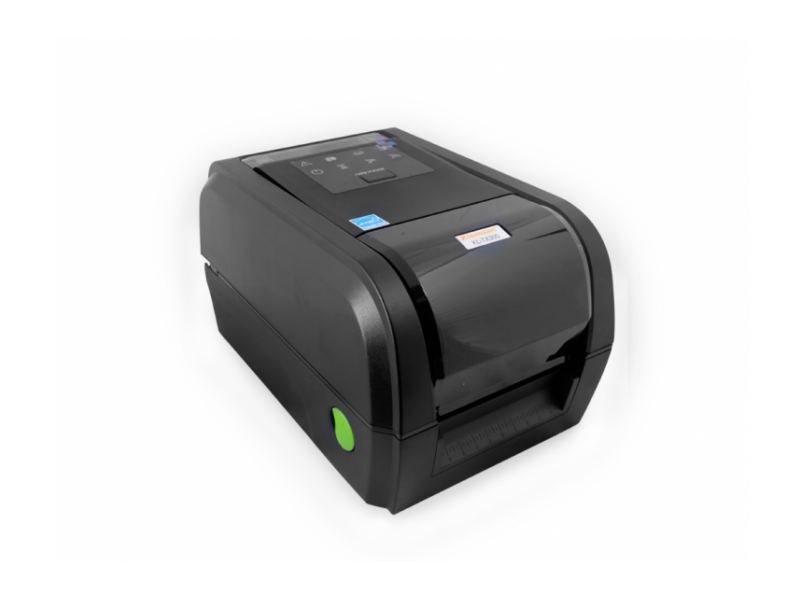

Klemsan Thermal Roll Printer KL-Tx300 ; 808452
The fast printer KL-Tx300 is designed for printing labels and stickers in a roll format. Its lightweight and compact design allows for easy use even in harsh environmental...
Price on request
The fast printer KL-Tx300 is designed for printing labels and stickers in a roll format. Its lightweight and compact design allows for easy use even in harsh environmental conditions. It prints all types of labels such as conductor labels, terminal labels, and other industrial labels and stickers.
| General Product Information | Printer Model | KL-Tx300 (No display) | |
| Resulation in DPI | 300 | ||
| Print Method | Thermal Transfer & Thermal Direct | ||
| Printing Speed | 152 mm/s (6”) | ||
| Max. Width | 106 mm/s (4,17”) | ||
| Max. Lenght | 11.430 mm/s (450”) | ||
| Casing | Double- walled folding design made of plastic | ||
| Dimensions | 226 mm (W) x 198 mm (H) x 332 mm (D) mm | ||
| Dimensions | 8,90” (W) x 7,80” (H) x 13,07“ (D) Inch | ||
| Weight | 3,75 kg kg | ||
| Label Rolls | 127 mm (5”) outer diamater | ||
| Ribbon | 300 m meters max. length; 67 mm outer diamater;1” core diameter | ||
| Ribbon Width | 40 mm to 110 mm (1,6” to 4,3”) | ||
| Processor | 32-bit RISC CPU | ||
| Memory | 128 MB Flash Memory, 128 MB SDRAM Memory, MicroSD Flash memory expansion up to 32 GB | ||
| Connection | USB 2.0; RS-232; Ethernet 10/100 Mbps; USB Host; Centronics (optional); External Bluetooth (server option); •External 802.11 b/g/n wireless module (server option) | ||
| Operation Buttons LED/ LCD | Power switch; 1 Feed / Pause Button; LED panel with 8 large symbols / icons | ||
| Power | Input: AC 100-240V, 2.5A, 50-60Hz Output: DC 24V, 3.75A, 90W | ||
| Sensors | • Transmissive sensor for label gaps; Adjustable reflective marking sensor (Blackmark); Film rotation; Print head open | ||
| Real Time Clock | Optional | ||
| Internet Fonts | • 8 alphanumeric bitmap fonts; Monotype Image® Truetype font set with a scalable CG Triumvirate bold condensed font | ||
| Barcode | 1D Barcode: Code 39, Code 93, Code 128UCC, Code 128 Charset A, B, C, Codebar, Interleave 2/5, EAN-8, EAN-13, EAN-128, UPCA,UPC-E, EAN and UPC 2 (5) Extension, MSI, PLESSEY, POSTNET, ITF14, EAN 14, Code 11, TELEPEN, TELEPENN, PLANET, Code 49, Deutsche Post Identcode 2D Barcode: TLC39, CODABLOCK F, PDF-417, Maxicode, DataMatriz, QR Code, Aztec, Micro PDF 417, GS1 DataBar (RSS Barcode) | ||
| Font / Barcode | Rotation 0°, 90°, 180°, 270° | ||
| Printer Command | TSPL-EZTM (Compatible with EPL, ZPL, ZPL II) | ||
| Material Type | Endless, pre-punched, black marking, leporello-folded, notch, bracelet (externally wound) | ||
| Material Width | 19 to 112 mm (0,75” to 4,4”) | ||
| Material Thickness | 3 to 11.430 mm; (0,1“ to 450“) | ||
| Material Core Diameter | 25,4 to 38,1 mm (1” to 1.5”) | ||
| Label Length | 3 to 11.430 mm; (0,1“ to 450“) | ||
| Environmental | Operation: 5 to 40°C, 25 to 85% humidity (non-condensing) | ||
| Conditions | Storage: -40 to 60°C, 10 to 90% humidity (non-condensing) | ||
| Safety Instructions | FCC Klasse B, CE Klasse B, RCM, UL, cUL, TÜV/Safety, CCC | ||
| Environmental Protection | Corresponds to RoHS, WEEE | ||
| Accessories | Windows Software CD, Quick Start Guide; USB Cable; Power Cord; External Universal Power Supply | ||
| Warranty | Printer: 2 years | ||
| Optional Accessories | Centronics Parallel-Creation; Real-time Clock; 3.5” Colour TFT display (with real time clock); Ribbon End Sensor; Centronics Parallel Interface; Guillotine Knife (full) | ||
