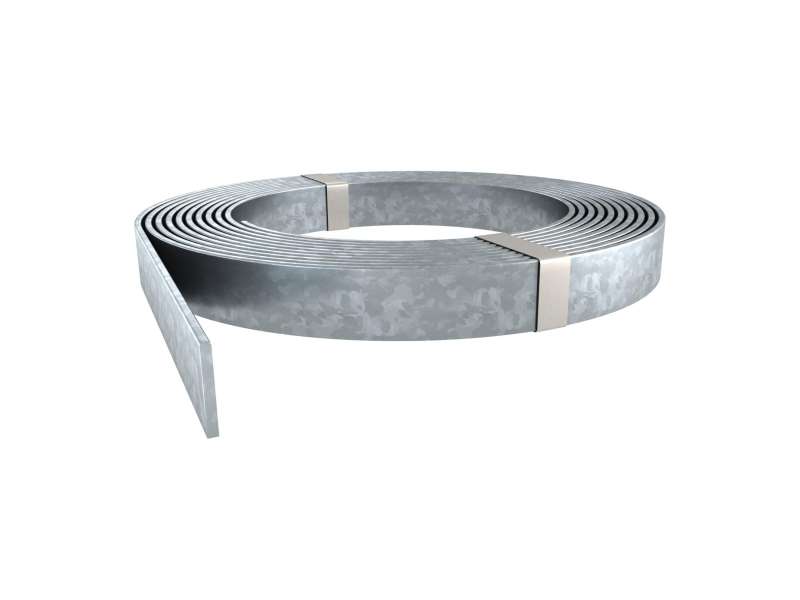

Obo Betterman Čelična traka 25×3 mm toplo pocinkovana (DIN EN ISO 1461), kotur 84 m | 5019342
The hot-dip galvanized steel strip is designed for earthing systems, lightning protection installations and ring equipotential bonding. It complies with DIN EN 62561-2...
VAT-exclusive price: 393,84 |
VAT-inclusive price: 472,61 |
The hot-dip galvanized steel strip is designed for earthing systems, lightning protection installations and ring equipotential bonding. It complies with DIN EN 62561-2 and IEC 62305 standards. The zinc coating of at least 500 g/m² ensures reliable corrosion protection and long service life. Supplied in an approximately 84 m coil.
| Specification | Value |
|---|---|
| Cross-section | 75 mm² |
| Dimensions | 25 × 3 mm |
| Width | 25 mm |
| Height | 3 mm |
| Length tolerance | ± 5 % |
| Material | Steel |
| Surface | Hot-dip galvanised |
| Normal ring length | 84 m |
| Normal ring weight | 50 kg |
