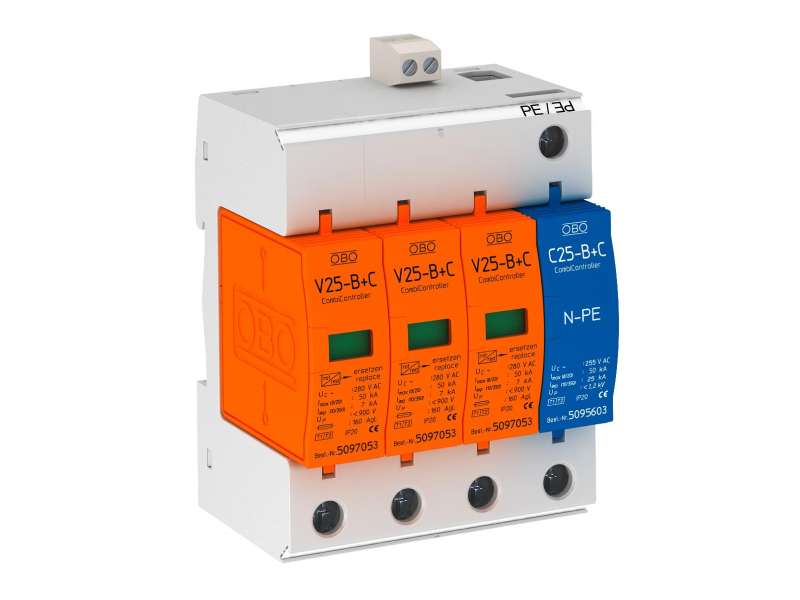

Obo Betterman Kombinovana prenaponska zaštita V25 Tip 1+2, 3+NPE 280V sa daljinskom signalizacijom | 5094510
The V25 combination lightning and surge arrester (catalog number 5094510) Type 1+2 provides reliable protection against lightning currents and transient overvoltages....
VAT-exclusive price: 13.323,79 |
VAT-inclusive price: 15.988,54 |
The V25 combination lightning and surge arrester (catalog number 5094510) Type 1+2 provides reliable protection against lightning currents and transient overvoltages. The 3+NPE configuration makes it suitable for TN and TT systems.
The device is supplied as a complete unit (plug-in module and base), pre-assembled and ready for connection. It includes remote signalling (FS variant) with a potential-free NO contact for function monitoring.
The maximum continuous operating voltage is 280 V AC. Nominal discharge current is 30 kA (8/20 µs), while the maximum discharge current reaches 150 kA. The voltage protection level is below 0.9 kV. Suitable for buildings with overhead supply lines and lightning protection equipotential bonding.
| Parameter | Value |
|---|---|
| Product | Combination arrester V25 Type 1+2 |
| Configuration | 3+NPE (3-pole + N/PE) |
| Maximum continuous voltage AC | 280 V |
| Maximum continuous voltage DC | 200 V |
| Nominal voltage | 230 V AC |
| Nominal discharge current (8/20 µs) | 30 kA |
| Lightning surge current (10/350 µs) | 7 kA |
| Total lightning surge current (10/350 µs) | 25 kA |
| Maximum discharge current (8/20 µs) | 150 kA |
| Total surge current (8/20 µs) | 50 kA |
| Response time | < 25 ns |
| Protection rating | IP20 |
| Operating temperature range | -40 °C to +80 °C |
| Max. back-up fuse | 160 A |
| Max. mains-side overcurrent protection | 160 A |
| Conductor cross-section | 2.5 – 35 mm² (rigid) |
| Lightning protection zone | LPZ 0 → 2 |
| Network systems | TN, TN-S, TN-C-S, TT |
| Remote signalling | Yes (potential-free NO contact) |
| Device signalling | None |
| Standards | EN 61643-11 Type 1+2 / IEC 61643-1 Class I+II |
