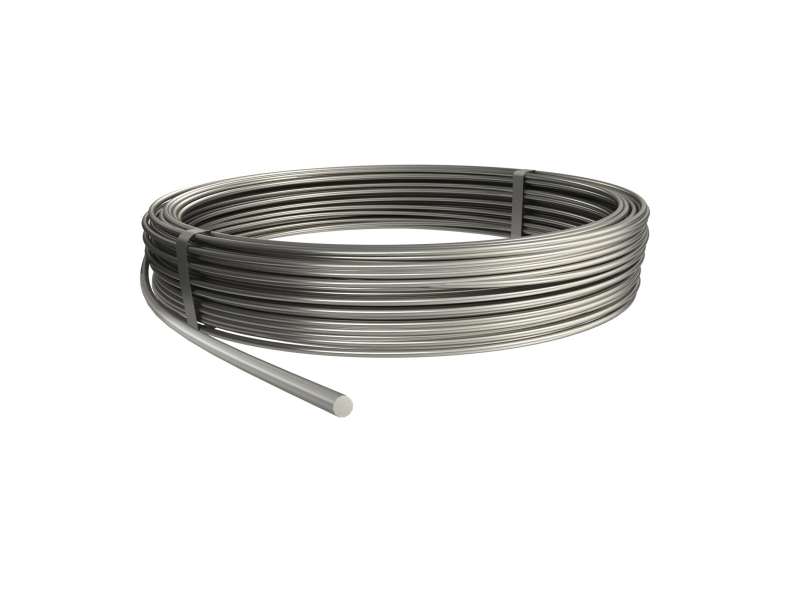

Obo Betterman Kružni provodnik 8 mm lako savitljiv, aluminijum, kotur 150 m | 5021294
The flexible round aluminium conductor is designed for earthing systems and can be used as a lightning current conductor. It meets DIN EN 62561-2 and IEC 62305 standards....
VAT-exclusive price: 252,76 |
VAT-inclusive price: 303,32 |
The flexible round aluminium conductor is designed for earthing systems and can be used as a lightning current conductor. It meets DIN EN 62561-2 and IEC 62305 standards. Available in semi-rigid, torsion, or pure aluminium variants. AL and ALMgSi must not be installed directly in mortar, lime, concrete, or the ground. Supplied in an approximately 150 m coil.
| Specification | Value |
|---|---|
| Number of wires | 1 |
| Dimension | 8 mm |
| Cross-section | 50 mm² |
| Diameter | 8 mm |
| Length tolerance | ± 5 % |
| Material | Aluminium |
| Material properties | Soft |
| Surface | Bare, uncoated |
| Normal ring length | 150 m |
| Normal ring weight | 20 kg |
| High-voltage insulated variant | No |
