Obo Betterman Quick-Pipe komplet, Quick-cev + Quick-obujmica, M16, svetlosiva, PVC, 1 kom | 2154501
Quick-Pipe set includes Quick pipe and Quick clip for electrical installation, size M16, light grey, made of PVC. The set is intended for surface-mounted routing...
VAT-exclusive price: 9.158,31 |
VAT-inclusive price: 10.989,98 |

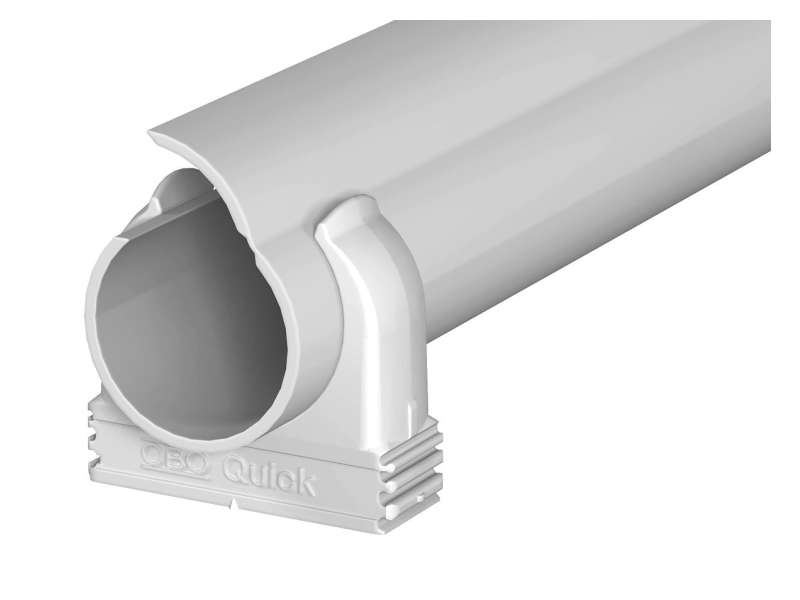

Quick-Pipe set includes Quick pipe and Quick clip for electrical installation, size M16, light grey, made of PVC. The set is intended for surface-mounted routing of cables in interiors and protected outdoor areas, with universal fastening on walls and ceilings. It comprises 50 m of pipe, each pipe 2 metres in length, and 156 Quick clips. Suitable for a temperature range of –25 to +60 °C.
| Attribute | Value |
|---|---|
| CO2 Footprint (GWP) Cradle-to-Gate | 9,7388 kg CO2e / 1 Piece |
| Colour | Light grey; RAL 7035 |
| Concealed | No |
| Concrete installation | Yes |
| Dimension | M16 |
| Dimension C | 8,2 mm |
| Dimension D | 15,6 mm |
| Dimension t | 1,2 mm |
| Flame-resistant version | No |
| Halogen-free | No |
| Installation in the earth | No |
| Installation on wood | Yes |
| Installation outdoors | No |
| Machines and system installation | Yes |
| Material | Polyvinylchloride |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -25 °C |
| Size | M16 |
| Surface-mounted | Yes |
| Underfloor installation (screed) | No |
| With sleeve | No |
