Obo Betterman Razvodna kutija bez halogena, 125x100x38, čistobela, PE | 2000422
Halogen-free distribution box with 18 entries and IP55 protection, made of light white polyethylene (PE, RAL 9010). Suitable for wall or ceiling mounting. Snap-on...
VAT-exclusive price: 253,11 |
VAT-inclusive price: 303,73 |
Halogen-free distribution box with 18 entries and IP55 protection, made of light white polyethylene (PE, RAL 9010). Suitable for wall or ceiling mounting. Snap-on cover allows easy closure. Dimensions are 125 x 100 x 40 mm, internal dimensions 115 x 90 x 35 mm. One cutting tool included per 10 boxes. Self-extinguishing according to VDE 0471/DIN 695 part 2-1, tested at 650°C. Halogen-free.
| Protection type | IP55 |
| Nominal voltage | 690 V |
| Nominal conductor cross-section | 2.5 mm² |
| Entries for cable 5-14 mm | 10 |
| Entries for cable 5-11 mm | 8 |
| Snap-on cover | Yes |

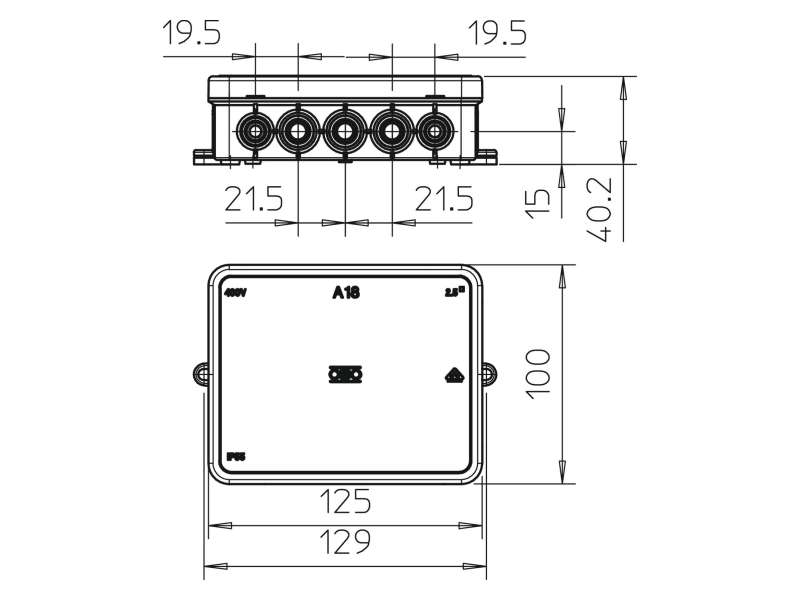

| Dimensions | 125 x 100 x 40 mm |
| Internal dimensions | 115 x 90 x 35 mm |
| Halogen-free | Yes |
| Color | Light white; RAL 9010 |
| Number of entries | 18 |
| CO2 footprint (GWP) cradle-to-gate | 0.1968 kg CO2e / 1 piece |
| Dimension | 125 x 100 x 38 mm |
| Length | 125 mm |
| Maximum conductor cross-section | 2.5 mm² |
| Material | Polyethylene |
| Possibility of sealing | No |
| Mounting method | Wall/Ceiling |
| Nominal voltage | 690 V |
| Nominal conductor cross-section min. | 2.5 mm² |
| Shape | Square |
| Maintenance of functionality | No |
| Equipment | None |
| Weather-resistant | No |
| Cover | Not transparent |
| Cover attachment | Snap-fit |
| Reference insulation voltage Ui | 690 V |
| With cover | Yes |
| With protection | No |
| Self-extinguishing | According to VDE 0471/DIN 695 part 2-1, test temperature 650°C |
| Serial | Yes |
| Width | 100 mm |
| Max temperature application | 45 °C |
| Min temperature application | -5 °C |
| Transparent cover | No |
| Internal dimensions | 115 x 90 x 35 mm |
| Rear entry | No |
| Explosion-tested variant | No |
| Variant of distribution box cover | Masking cover |
| Height | 40 mm |
| Type of entry | Cable |
| Type of entry | Cable |
| Type of entry in housing | Groove |
| Protection class | IP55 |
| For gas hazardous zones | No |
| For dust hazardous zones | No |
| For explosive zones | No |
