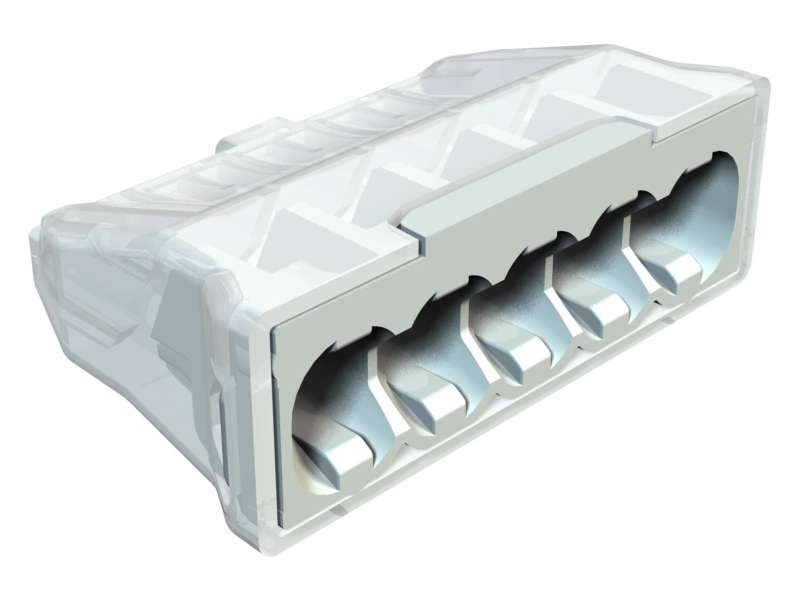

Obo Betterman Utična klema bez vijaka 5x2,5mm², svetlosiva | 2054507
Plug-in terminal block without screws for connecting single-core and multi-core conductors, tested according to EN 60998. Conductor nominal cross-section: 5 x 0.5...
VAT-exclusive price: 7,52 |
VAT-inclusive price: 9,03 |
Plug-in terminal block without screws for connecting single-core and multi-core conductors, tested according to EN 60998. Conductor nominal cross-section: 5 x 0.5 mm² – 2.5 mm² for single wires, 5 x 1.5 mm² – 2.5 mm² for rigid multi-core conductors. Rated voltage 450 V, rated current 24 A. Stripping length: 8–9 mm, test hole: Ø max. 2 mm. Maximum ambient temperature: 90 °C. Self-extinguishing according to VDE 0471/DIN 695 part 2-1 (tested at 850 °C). Color: light gray (RAL 7035).
| Color | Light gray; RAL 7035 |
|---|---|
| Number of poles | 5 |
| Number of terminal positions | 5 |
| Dimension | 5x2,5mm² |
| Length | 26 mm |
| Material | Polyamide (PA) |
| Rated current | 24 A |
| Rated voltage | 450 V |
| Maximum nominal diameter | 2,5 mm² |
| Minimum nominal diameter | 0,5 mm² |
| Flexible conductors compatible | No |
| Solid conductors compatible | No |
| Multi-core conductors compatible | Yes |
| Conductor cross-section | 5 x 0.5 mm² – 2.5 mm² single-core, 5 x 1.5 mm² – 2.5 mm² multi-core |
| Connection diameter single-core max | 2,5 mm² |
| Connection diameter single-core min | 0,5 mm² |
| Connection diameter multi-core max | 2,5 mm² |
| Connection diameter multi-core min | 1,5 mm² |
| Activation lever | No |
| Self-extinguishing | According to VDE 0471/DIN 695 part 2-1, tested at 850°C |
| Width | 15,6 mm |
| Max. operating temperature | 90 °C |
| Min. operating temperature | -5 °C |
| Height | 8,9 mm |
