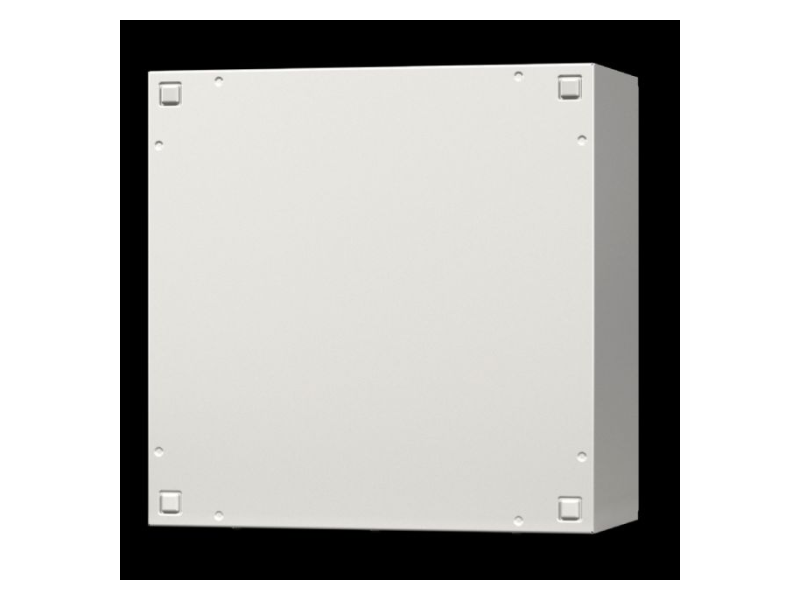

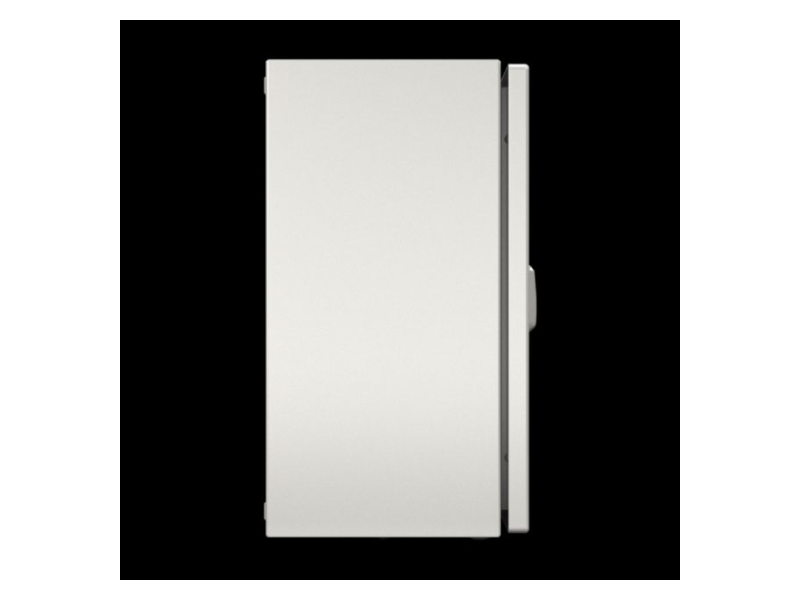

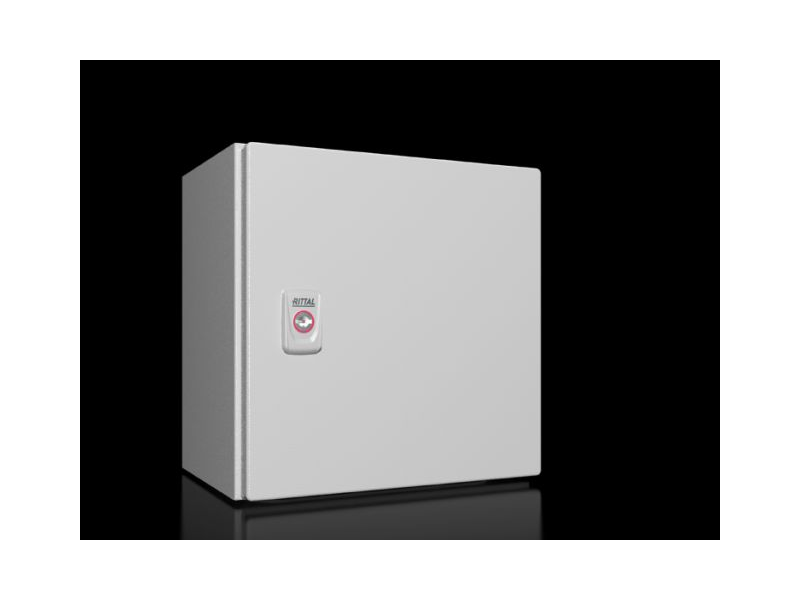

Rittal AX orman 500x700x250mm (ŠxVxD), Čelik, IP66, RAL7035 | 1057000
The compact enclosure AX with integral enclosure locators in the roof, base and side forms the familiar 25 mm system pitch pattern from the VX25 large enclosure....
VAT-exclusive price: 25.663,59 |
VAT-inclusive price: 30.796,30 |
The compact enclosure AX with integral enclosure locators in the roof, base and side forms the familiar 25 mm system pitch pattern from the VX25 large enclosure. With this unique, patented system, AX compact enclosures are prepared for all types of configurations and refits. System components and accessories are easily, quickly and securely installed and retrofitted on rails, with no drilling required.
| Attribute | Details |
|---|---|
| Benefits |
More interior installation options thanks to integral enclosure locators on a 25 mm system pitch pattern combined with the interior installation rail and our diverse range of system accessories. Maintains the protection category (UL approval) by mounting the interior installation rail with no drilling required. Base configuration rail provides additional mounting level and increased load capacity. Simple planning and configuration with the Rittal RiPanel configurator. |
| Material |
Enclosure: Sheet steel Door: Sheet steel, all-round foamed-in PU seal |
| Surface finish |
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint Mounting plate: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes |
Enclosure with door(s) Gland plate(s) in enclosure base Mounting plate Perforated door strip Lock: 3 mm double-bit |
| Protection category NEMA | 1, 3R, 4, 12 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1, Type 3R, Type 4, Type 12 |
| IK Code | IK10 |
| Dimensions (W x H x D) | 500 mm x 700 mm x 250 mm |
| Material thickness |
Door: 2 mm Enclosure: 1.5 mm Mounting plate: 2.5 mm |
| Dimensions mounting plate (W x H) | 450 mm x 675 mm |
| Number of doors | 1 |
| Interchangeable door hinge | Yes |
| Lock | Cam lock, 2 pieces, 3 mm double-bit |
| Gland plate | Size: 3, Qty: 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 24.75 kg |
| Gross weight | 24.96 kg |
| PCF per pack (cradle-to-gate) | 83.2 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813335 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | AX Compact enclosure, WHD: 500x700x250 mm, sheet steel, with mounting plate, single-door, with two cam locks |
