Rittal AX ORMAN 600x600x210 (švd), 1.4301, 2x cam lock | 1010000
The robust stainless steel enclosure AX (600x600x210mm, 1.4301, 2x cam lock) 1010000, features an integral locator system that ensures fast, easy, reliable, and...
VAT-exclusive price: 25.663,59 |
VAT-inclusive price: 30.796,30 |

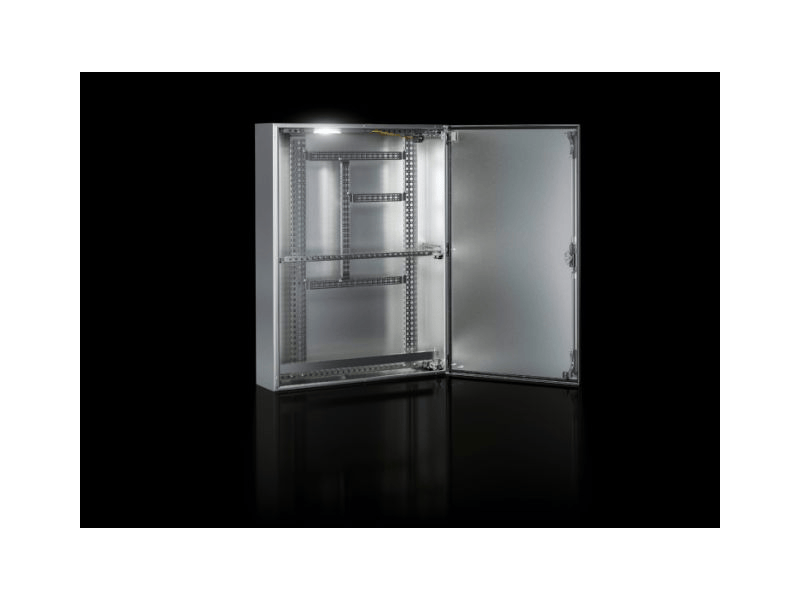

The robust stainless steel enclosure AX (600x600x210mm, 1.4301, 2x cam lock) 1010000, features an integral locator system that ensures fast, easy, reliable, and versatile configuration. With its durable stainless steel construction and double cam lock security, it is designed for demanding industrial applications. System components and accessories can be quickly and securely installed or retrofitted without the need for drilling, providing maximum efficiency and reliability.
AX 1010000 Compact Enclosure
| Attribute | Details |
|---|---|
| Material |
Enclosure: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Sheet steel, Stainless steel 1.4301 (AISI 304) |
| Surface finish |
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting plate: Zinc-plated |
| Supply includes |
Enclosure with door(s), opening angle 130° Mounting plate Lock: 3 mm double-bit |
| Protection category NEMA | 1, 3R, 4, 4X, 12 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK Code | IK10 |
| Dimensions (W x H x D) | 600 mm x 600 mm x 210 mm |
| Material thickness |
Door: 1.5 mm Enclosure: 1.25 mm Mounting plate: 2.5 mm |
| Dimensions mounting plate (W x H) | 550 mm x 575 mm |
| Number of doors | 1 |
| Lock | Cam lock, 2 pieces, 3 mm double-bit, material: Die-cast zinc |
| Packs of | 1 pc(s) |
| Net weight | 19.9 kg |
| Gross weight | 20.14 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177814998 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | AX Compact enclosure, WHD: 600x600x210 mm, stainless steel 1.4301, with mounting plate, single-door, with two cam locks |
