Rittal AX ORMAN 800x1000x300 (švd), 1.4301, 2x | 1016000
The robust stainless steel enclosure AX (800x1000x300mm, 1.4301, 2x cam lock) 1016000, features an integral locator system, enabling fast, easy, reliable, and extensive...
VAT-exclusive price: 130.147,34 |
VAT-inclusive price: 156.176,81 |

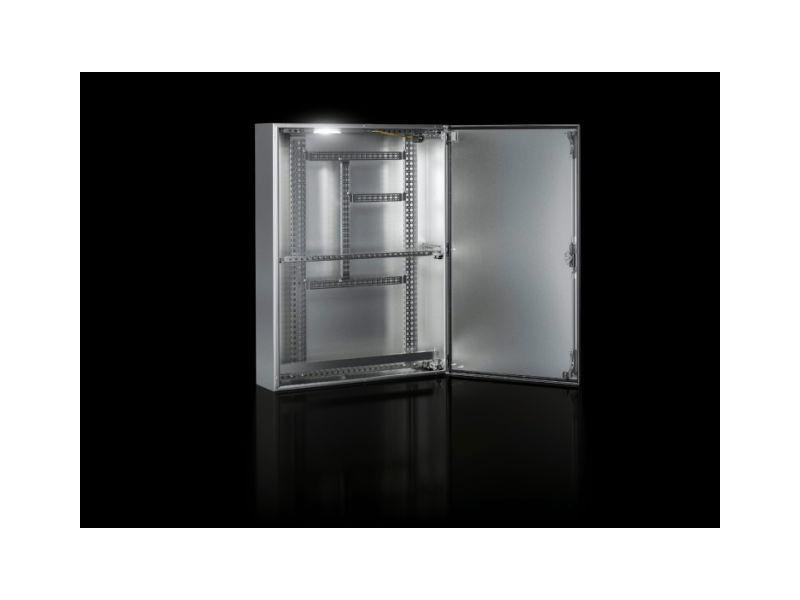

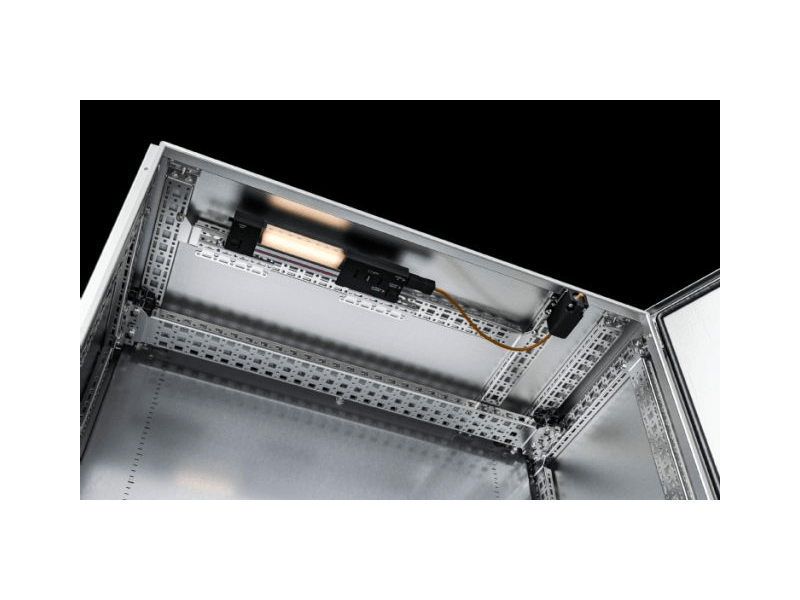

The robust stainless steel enclosure AX (800x1000x300mm, 1.4301, 2x cam lock) 1016000, features an integral locator system, enabling fast, easy, reliable, and extensive configuration. Its durable stainless steel construction and double cam lock security make it ideal for demanding industrial applications. Components and accessories can be quickly and securely installed or retrofitted without drilling, ensuring maximum efficiency and reliability.
AX 1016000 Compact Enclosure
| Attribute | Details |
|---|---|
| Material |
Enclosure: Stainless steel Door: Stainless steel, all-round foamed-in PU seal Mounting plate: Sheet steel, Stainless steel 1.4301 (AISI 304) |
| Surface finish |
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting plate: Zinc-plated |
| Supply includes |
Enclosure with door(s), opening angle 130° Mounting plate Lock: 3 mm double-bit |
| Protection category NEMA | 1, 3R, 4, 4X, 12 |
| Protection category to IEC 60 529 | IP 66 |
| Type rating to UL 50E | Type 1, Type 3R, Type 4, Type 4X, Type 12 |
| IK Code | IK10 |
| Dimensions (W x H x D) | 800 mm x 1000 mm x 300 mm |
| Material thickness |
Door: 2 mm Enclosure: 1.5 mm Mounting plate: 2.5 mm |
| Dimensions mounting plate (W x H) | 745 mm x 975 mm |
| Number of doors | 1 |
| Lock | Cam lock, 2 pieces, 3 mm double-bit, material: Die-cast zinc |
| Packs of | 1 pc(s) |
| Net weight | 50.3 kg |
| Gross weight | 51 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177815025 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | AX Compact enclosure, WHD: 800x1000x300 mm, stainless steel 1.4301, with mounting plate, single-door, with two cam locks |
