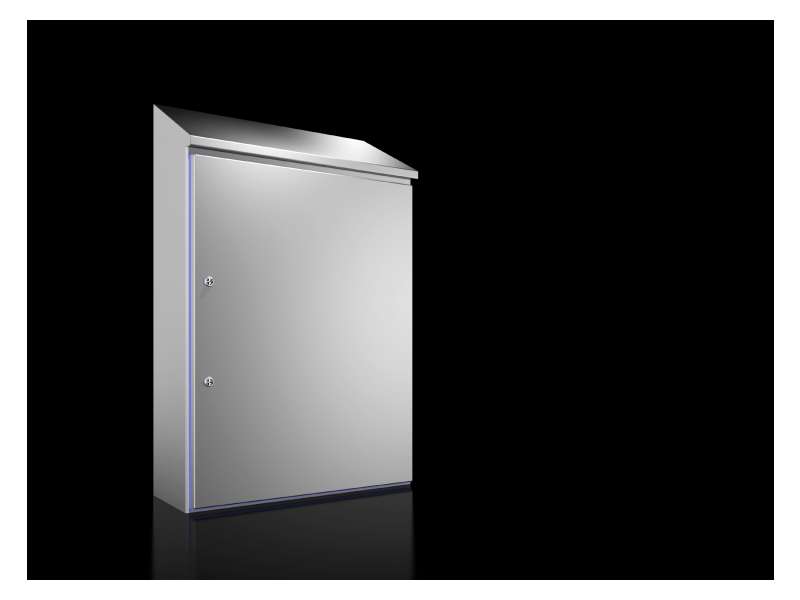

Rittal HD orman (810x1221/1050x300)mm (ŠxV2/V1xD), Prohrom 1.4301, IP66 1316600
Enclosure solution tailored to the requirements of the food and beverage industry. Roof angled forwards by 30°. Seal dyed blue to clearly distinguish it from...
VAT-exclusive price: 184.989,62 |
VAT-inclusive price: 221.987,54 |
Enclosure solution tailored to the requirements of the food and beverage industry. Roof angled forwards by 30°. Seal dyed blue to clearly distinguish it from foodstuffs
HD 1316600 Hygienic Enclosure
| Attribute | Details |
|---|---|
| Design | Hygienic Design enclosure |
| Product modification | From June 2020, the compact enclosure HD, single-door, comes with the new compact enclosure AX mounting plate. |
| Material |
Enclosure and door: Stainless steel 1.4301 (AISI 304) Mounting plate: Sheet steel Lock insert HD: Stainless steel 1.4404 (AISI 316L) Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600 |
| Surface finish |
Enclosure and door: Brushed, grain 400, peak-to-valley height < 0.8 µm Mounting plate: Zinc-plated Seal: Blue, dyed (RAL 5010) |
| Supply includes |
Enclosure of all-round solid construction Door with inserted seal Door hinged on the right, may be swapped to the left Mounting plate |
| Dimensions |
Width: 810 mm Height, front: 1,050 mm Height rear: 1,221 mm Depth: 300 mm |
| Dimensions mounting plate (W x H) | 745 mm x 975 mm |
| Door opening angle | 125° |
| Number of locks | 2 |
| IK Code | IK08 |
| Basic material | Stainless steel 1.4301 (AISI 304) |
| IP protection category to IEC 60 529 | IP 66, IP X9 |
| Protection category NEMA | NEMA 1, NEMA 3, NEMA 3X, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Type rating to UL 50E | Type 1, Type 3, Type 3X, Type 4, Type 4X, Type 12, Type 13 |
| Packs of | 1 pc(s) |
| Net weight | 59,4 kg |
| Gross weight | 61,3 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177567641 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | HD Compact enclosure, WHD: 810x1050(H1)x1221(H2)x300 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal |
