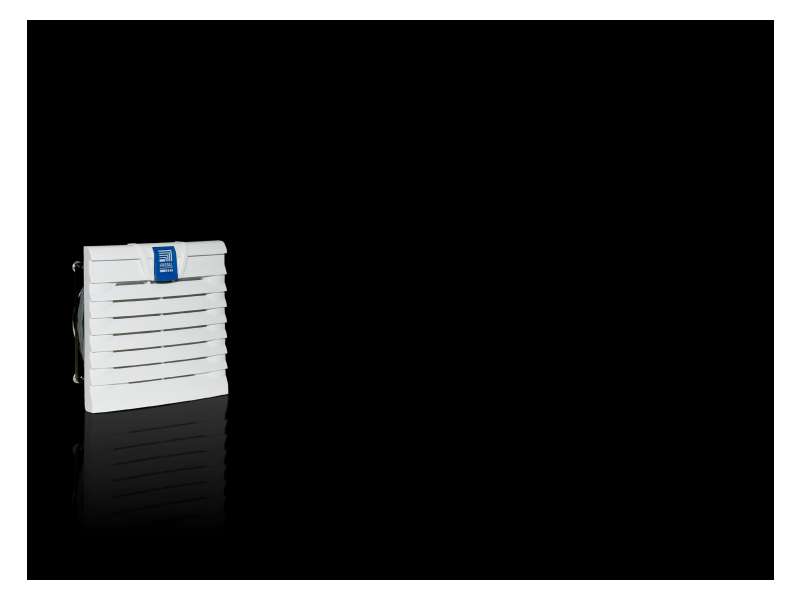

Rittal RITTAL VENTILATOR protoka 20/25m3/h,230V, Spolj.dim.116,5x116,5mm | 3237100
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54....
VAT-exclusive price: 10.146,23 |
VAT-inclusive price: 12.175,48 |
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, standard protection category IP 54.
| Product description | SK fan and filter units TopTherm, 20/25 m³/h, 230 V, 1~, 50/60 Hz, WHD: 116.5 x 116.5 x 16 mm |
|---|---|
| Design | Wall-mounted |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including chopped-fibre filter mat |
| Fan | Axial, shaded pole motor |
| Air throughput, unimpeded airflow |
With chopped-fibre filter: 50 Hz: 20 m³/h 60 Hz: 25 m³/h |
| Air throughput with outlet filter (qty x order no.) |
1 x 3237200: 15/18 m³/h 2 x 3237200: 16/20 m³/h |
| Rated operating voltage | 230 V, 1~, 50/60 Hz |
| Power consumption |
At 50 Hz: 12 W At 60 Hz: 10 W |
| Rated current max. |
At 50 Hz: 0.065 A At 60 Hz: 0.07 A |
| Dimensions (W x H) | 116.5 x 116.5 mm |
| Installation depth | 43 mm |
| Mounting cut-out |
Width: 92 mm Height: 92 mm |
| IP protection category |
IP 54 with chopped-fibre filter IP 56 with chopped-fibre filter and hose-proof hood |
| NEMA protection |
Type 12 with chopped-fibre filter Type 3 Type 3R with chopped-fibre filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Notes |
To increase air throughput, pleated filter may optionally be used. For SK 3237.XXX: connection via two single wires (approx. 300 mm). For other units: screwless spring terminal. |
| Service life of fans (L10, 40 °C) |
50 Hz: 55,000 h 60 Hz: 60,000 h |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level |
50 Hz: 38 dB(A) 60 Hz: 43 dB(A) |
| Packs of | 1 pc(s) |
| Net weight | 0.38 kg |
| Gross weight | 0.46 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177637580 |
| ETIM 9 / 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
