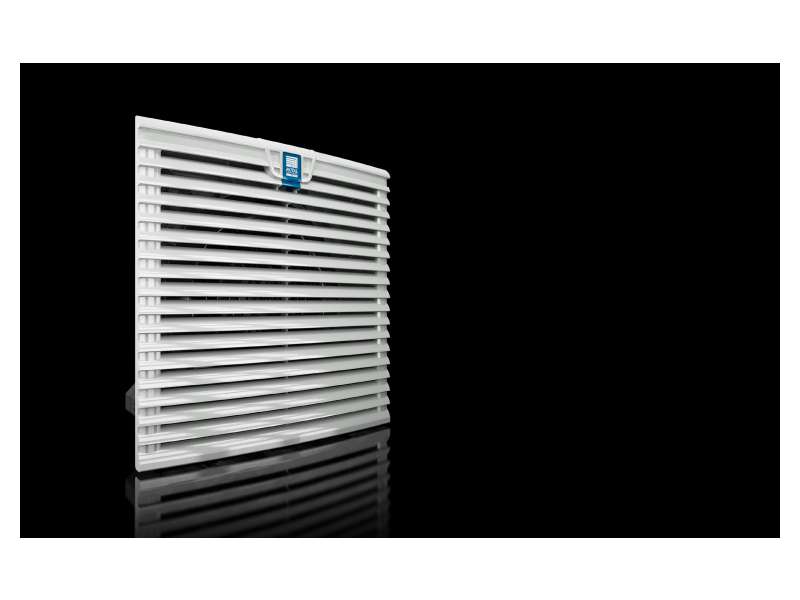

Rittal RITTAL VENTILATOR protoka 230m3/h, 24V(DC), spolj.dim.255x255mm/224x224mm 3241124
The Rittal SK fan unit 3241124 (230 m³/h, 24V DC) is designed for efficient enclosure cooling. It features tool-free surface mounting, IP54 protection, and...
VAT-exclusive price: 36.437,13 |
VAT-inclusive price: 43.724,56 |
The Rittal SK fan unit 3241124 (230 m³/h, 24V DC) is designed for efficient enclosure cooling. It features tool-free surface mounting, IP54 protection, and reliable airflow for industrial applications.
| Product description | SK Fan-and-filter unit TopTherm, 225 m³/h, 24 V (DC), WHD: 255 x 255 x 25 mm. Wall-mounted, diagonal fan technology for stable air throughput and even heat dissipation. Cover for connection clamp removed since May 2024; does not affect function or reliability. |
|---|---|
| Design | Wall-mounted |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including chopped-fibre filter mat |
| Fan | Diagonal, DC motor |
| Air throughput (unimpeded) |
With DC: 225 m³/h With pleated filter: 272 m³/h |
| Air throughput with outlet filter |
1 x 3240200: 171 m³/h 2 x 3240200: 200 m³/h |
| Rated operating voltage | 24 V (DC) |
| Power consumption | With DC: 19 W |
| Rated current max. | With DC: 0.78 A |
| Dimensions (W x H x D) | 255 x 255 x 107 mm (build depth included) |
| Mounting cut-out | Width: 224 mm, Height: 224 mm |
| IP protection category |
IP 54 with chopped-fibre filter/pleated filter IP 55 with pleated filter and absorber mat IP 56 with chopped-fibre filter/pleated filter and hose-proof hood |
| Protection category NEMA |
Type 12 with chopped-fibre filter/pleated filter Type 3, 3R, 4, 4X with chopped-fibre filter/pleated filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | With DC: 54 dB(A) |
| Packs of | 1 pc(s) |
| Net weight | 1.82 kg |
| Gross weight | 2.029 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177652019 |
| ETIM 9 / 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
