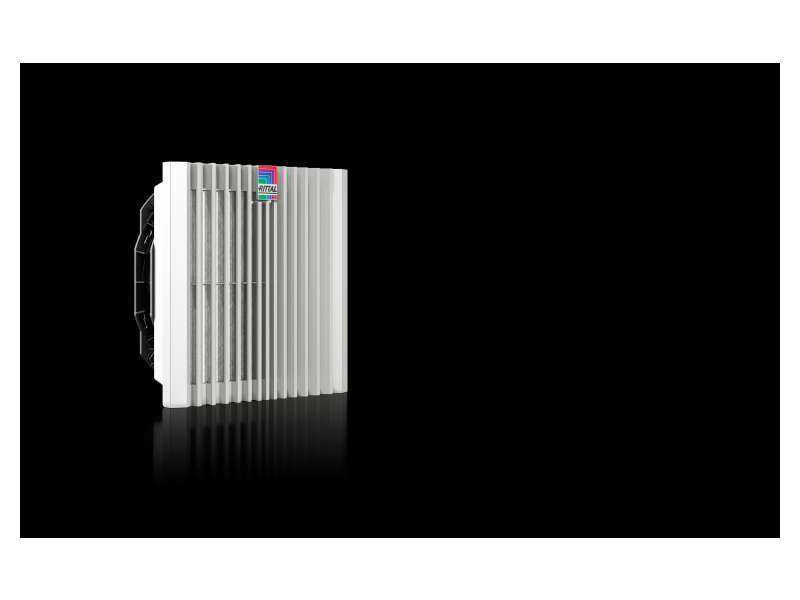

Rittal SK VENTILATOR 625/716 m3/h, 230VAC, RAL7035, 323x323 3243700
Complete fan-and-filter units for tool-free installation in surfaces. Air throughput 20 – 1,160 m³/h, protection category IP 54 as standard....
VAT-exclusive price: 3.107.910,72 |
VAT-inclusive price: 3.729.492,86 |
Complete fan-and-filter units for tool-free installation in surfaces. Air throughput 20 – 1,160 m³/h, protection category IP 54 as standard.

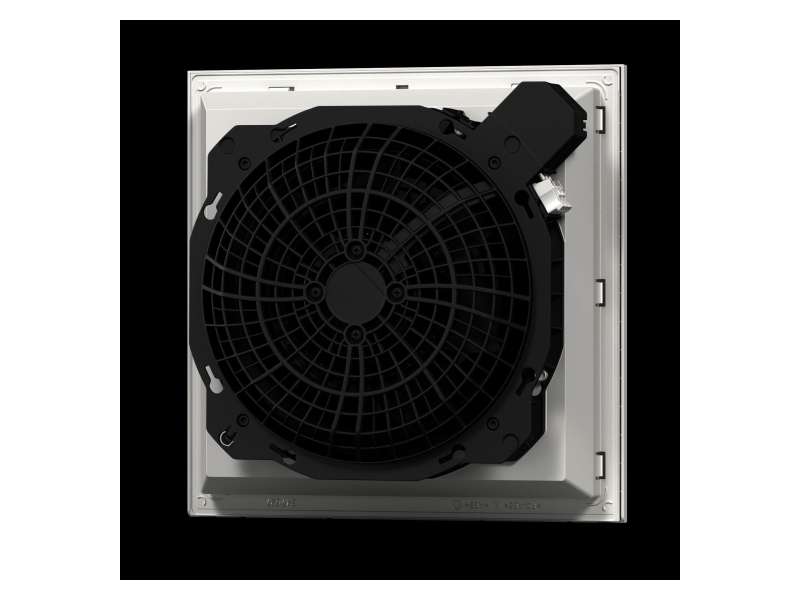

| Product description | SK Blue e+ fan-and-filter unit, 625/716 m³/h, 230 V, 1~, 50 Hz/60 Hz, WHD 323 x 323 x 144.5 mm, RAL 7035. Wall-mounted unit with diagonal fan technology for superior pressure stability and more constant air throughput. Maximum air throughput via pleated filter included. Tool-free assembly and easy filter changes. |
|---|---|
| Material | Plastic |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including pleated filter |
| Fan | Diagonal, 1~ capacitor motor |
| Air throughput (unimpeded) |
Chopped-fibre filter: 50 Hz: 540 m³/h, 60 Hz: 590 m³/h Pleated filter: 50 Hz: 625 m³/h, 60 Hz: 716 m³/h |
| Air throughput with matching outlet filter |
Chopped-fibre filter: 50 Hz: 444 m³/h, 60 Hz: 498 m³/h Pleated filter: 50 Hz: 565 m³/h, 60 Hz: 645 m³/h |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Power consumption Pel | 50 Hz: 77.7 W, 60 Hz: 106.4 W |
| Rated current max. | 50 Hz: 0.39 A, 60 Hz: 0.47 A |
| Dimensions (W x H x D) | 323 x 323 x 144.5 mm |
| Installation depth | 124 mm |
| Mounting cut-out | Width: 292 mm, Height: 292 mm |
| IP protection category |
IP 54 with chopped-fibre filter/pleated filter IP 55 with pleated filter and absorber mat IP 56 with chopped-fibre filter/pleated filter and hose-proof hood |
| Protection category NEMA |
Type 12 with chopped-fibre filter/pleated filter Type 3, 3R, 4, 4X with chopped-fibre filter/pleated filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | 50 Hz: 62 dB(A), 60 Hz: 65 dB(A) |
| Packs of | 1 pc(s) |
| Net weight | 4.1 kg |
| Gross weight | 4.28 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177997981 |
| ETIM 9 / 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
