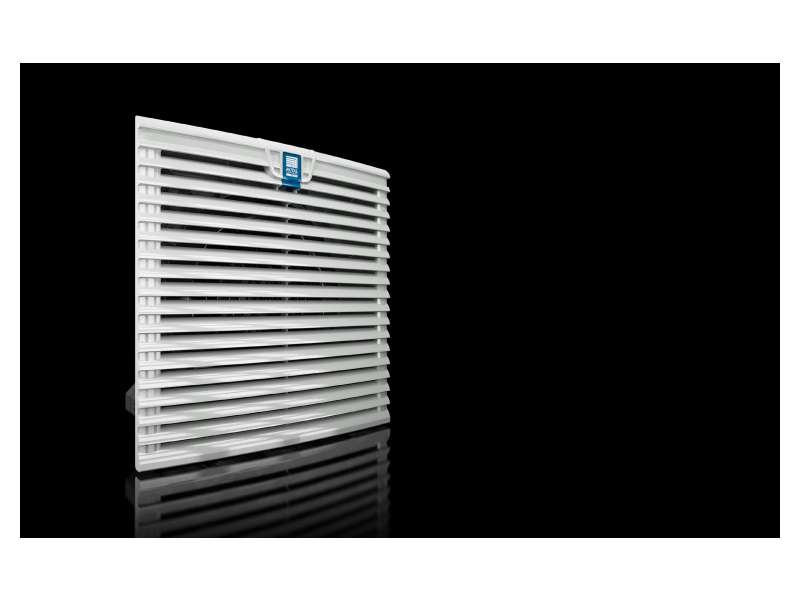

Rittal SK ventilator protoka 230/250m3/h, 115VAC, 1~, 50/60Hz, Ral 7035 | 3241110
The Rittal SK fan unit 3241110 (230/250 m³/h, 115V, RAL7035) ensures efficient enclosure cooling. It offers tool-free surface mounting, robust IP54 protection,...
VAT-exclusive price: 22.586,72 |
VAT-inclusive price: 27.104,07 |
The Rittal SK fan unit 3241110 (230/250 m³/h, 115V, RAL7035) ensures efficient enclosure cooling. It offers tool-free surface mounting, robust IP54 protection, and a reliable air throughput of up to 250 m³/h for industrial applications.
| Product description | SK Fan-and-filter unit TopTherm, 225/245 m³/h, 115 V, 1~, 50/60 Hz, WHD: 255 x 255 x 25 mm. Wall-mounted, diagonal fan technology for stable air throughput and even heat dissipation. Cover for connection clamp removed since May 2024; does not affect function or reliability. |
|---|---|
| Design | Wall-mounted |
| Colour | RAL 7035 |
| Supply includes | Complete unit ready to install, including chopped-fibre filter mat |
| Fan | Diagonal, shaded pole motor |
| Air throughput (unimpeded) |
50 Hz: 225 m³/h, 60 Hz: 245 m³/h With pleated filter: 50 Hz: 272 m³/h, 60 Hz: 272 m³/h |
| Air throughput with outlet filter |
1 x 3240200: 171/182 m³/h 2 x 3240200: 200/217 m³/h |
| Rated operating voltage | 115 V, 1~, 50/60 Hz |
| Power consumption | 50 Hz: 40 W, 60 Hz: 42 W |
| Rated current max. | 50 Hz: 0.52 A, 60 Hz: 0.48 A |
| Dimensions (W x H x D) | 255 x 255 x 107 mm (build depth included) |
| Mounting cut-out | Width: 224 mm, Height: 224 mm |
| IP protection category |
IP 54 with chopped-fibre filter/pleated filter IP 55 with pleated filter and absorber mat IP 56 with chopped-fibre filter/pleated filter and hose-proof hood |
| Protection category NEMA |
Type 12 with chopped-fibre filter/pleated filter Type 3, 3R, 4, 4X with chopped-fibre filter/pleated filter and hose-proof hood |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Service life of fans (L10, 40 °C) | 50 Hz: 61,000 h, 60 Hz: 60,000 h |
| Operating temperature range | -30 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Noise level | 50 Hz: 54 dB(A), 60 Hz: 56 dB(A) |
| Packs of | 1 pc(s) |
| Net weight | 2.2 kg |
| Gross weight | 2.38 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177652002 |
| ETIM 9 / 8 | EC000320 |
| ECLASS 8.0 | 27180716 |
