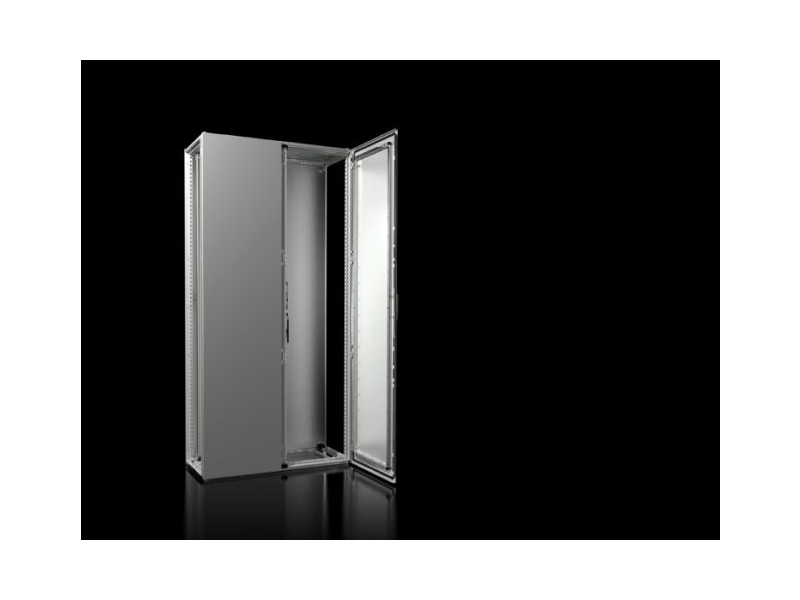

Rittal VX orman 1000x2000x600mm (ŠxVxD), Dvokrilni, IP55, RAL7035 | 8006000
The VX enclosure (1000x2000x600mm, IP55, RAL7035) is the standard solution in enclosure manufacturing. It features a frame with two front doors, rear panel, mounting...
VAT-exclusive price: 149.375,50 |
VAT-inclusive price: 179.250,61 |
The VX enclosure (1000x2000x600mm, IP55, RAL7035) is the standard solution in enclosure manufacturing. It features a frame with two front doors, rear panel, mounting plate, roof plate, and divided gland plates. Perfectly suited for efficient and flexible interior installation of industrial components.
| Article number | VX 8006000 |
| Product description | VX Baying enclosure system, WHD: 1000x2000x600 mm, sheet steel, with mounting plate, two doors at the front |
| Material |
Enclosure frame: Sheet steel, 1.5 mm Roof: Sheet steel, 1.5 mm Door: Sheet steel, 2.0 mm Rear panel: Sheet steel, 1.5 mm Gland plates: Sheet steel, 1.5 mm Mounting plate: Sheet steel, 3.0 mm |
| Surface finish |
Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and gland plates: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure frame, Door(s) hinged right (swappable), Roof plate, Rear panel, Gland plates, Mounting plate, 2 punched rails 18 x 39 mm, Lock: 3 mm double-bit |
| Dimensions (W x H x D) | 1000 x 2000 x 600 mm |
| Dimensions mounting plate (W x H) | 899 x 1896 mm |
| Protection category to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 1, NEMA 12 |
| Type rating to UL 50E | Type 1, Type 12 |
| IK Code | IK10 |
| Number of doors | 2 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 151,97 kg |
| Gross weight | 157,6 kg |
| PCF per pack (cradle-to-gate) | 389.3 kg CO2 eq (Cat B) |
| EAN | 4028177813557 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
