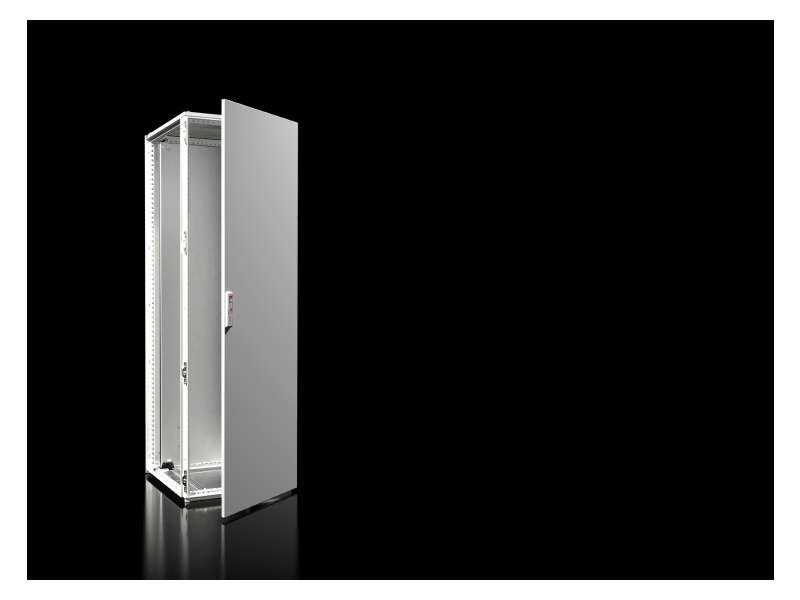

Rittal VX ORMAN 600x1800x600 | 8686000
The VX enclosure 600x1800x600 (8686000) sets the standard in enclosure manufacturing. It features a frame with one front door, rear panel, mounting plate, roof plate,...
VAT-exclusive price: 104.153,78 |
VAT-inclusive price: 124.984,53 |
The VX enclosure 600x1800x600 (8686000) sets the standard in enclosure manufacturing. It features a frame with one front door, rear panel, mounting plate, roof plate, and divided gland plates. Designed for efficient interior installation and offering maximum flexibility.
| Material | |
| Enclosure frame | Sheet steel, 1.5 mm |
| Roof | Sheet steel, 1.5 mm |
| Door | Sheet steel, 2.0 mm |
| Rear panel | Sheet steel, 1.5 mm |
| Gland plates | Sheet steel, 1.5 mm |
| Mounting plate | Sheet steel, 3.0 mm |
| Surface finish | |
| Enclosure frame | Dipcoat-primed |
| Door, roof and rear panel | Dipcoat-primed, powder-coated on the outside, textured paint |
| Mounting plate and gland plates | Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | |
|
Enclosure frame Door(s) Door hinged on the right, may be swapped to the left Roof plate Rear panel Gland plates Mounting plate 2 punched rails 18 x 39 mm Lock: 3 mm double-bit |
|
| Dimensions | |
| Width | 600 mm |
| Height | 1,800 mm |
| Depth | 600 mm |
| Mounting plate (W x H) | 499 mm x 1,696 mm |
| Protection category (IEC 60 529) | IP 55 |
| Protection category NEMA | NEMA 1, NEMA 12 |
| Type rating (UL 50E) | Type 1, Type 12 |
| IK Code | IK10 |
| Number of doors | 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 88.76 kg |
| Gross weight | 92.3 kg |
| PCF per pack (cradle-to-gate) | 227.4 kg CO2 eq (Cat B) |
| Note on PCF category | Category B: Approx. calculated and self-declared PCF value based on product weight |
| Customs tariff number | 94032080 |
| EAN | 4028177813816 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 600x1800x600 mm, sheet steel, with mounting plate, single front door |
