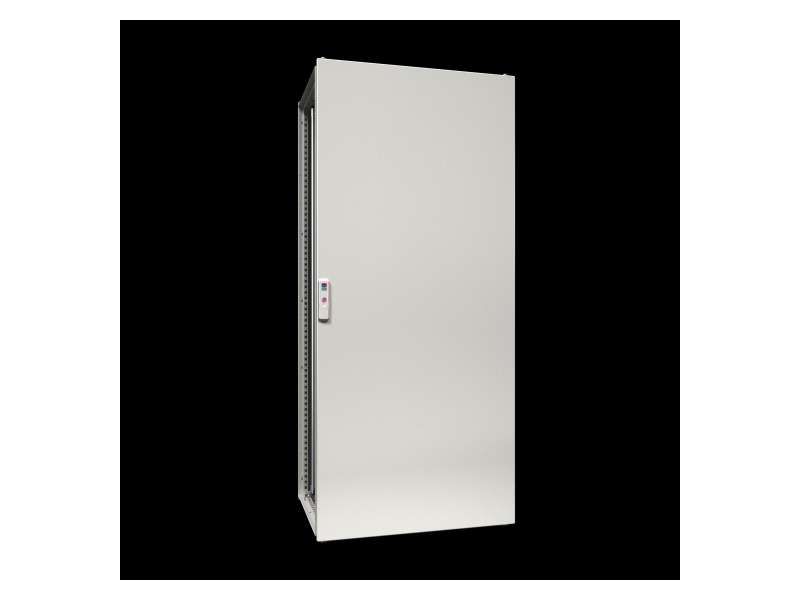

Rittal VX ORMAN 800x2000x600 | 8806000
The VX Enclosure 800x2000x600 (code 8806000) represents the standard in modern enclosure manufacturing. It features a sturdy frame with one front door, rear panel,...
VAT-exclusive price: 114.449,52 |
VAT-inclusive price: 137.339,42 |
The VX Enclosure 800x2000x600 (code 8806000) represents the standard in modern enclosure manufacturing. It features a sturdy frame with one front door, rear panel, mounting plate, roof plate, and divided gland plates, ensuring flexibility and reliability. Perfectly suited for efficient interior installation and industrial applications.
| Article number | VX 8806000 |
|---|---|
| Material |
Enclosure frame: Sheet steel, 1.5 mm Roof: Sheet steel, 1.5 mm Door: Sheet steel, 2.0 mm Rear panel: Sheet steel, 1.5 mm Gland plates: Sheet steel, 1.5 mm Mounting plate: Sheet steel, 3.0 mm |
| Surface finish |
Enclosure frame: Dipcoat-primed Door, roof and rear panel: Dipcoat-primed, powder-coated on the outside, textured paint Mounting plate and gland plates: Zinc-plated |
| Colour | RAL 7035 |
| Supply includes | Enclosure frame, Door(s), Roof plate, Rear panel, Gland plates, Mounting plate, 2 punched rails 18 x 39 mm, Lock: 3 mm double-bit |
| Door information | Door hinged on the right, may be swapped to the left |
| Dimensions (W x H x D) | 800 x 2000 x 600 mm |
| Mounting plate dimensions (W x H) | 699 x 1896 mm |
| Protection category (IEC 60529) | IP 55 |
| Protection category (NEMA) | NEMA 1, NEMA 12 |
| Type rating (UL 50E) | Type 1, Type 12 |
| IK Code | IK10 |
| Number of doors | 1 |
| Basic material | Sheet steel |
| Packs of | 1 pc(s) |
| Net weight | 120.7 kg |
| Gross weight | 125.8 kg |
| PCF per pack (cradle-to-gate) | 309.9 kg CO₂ eq (Cat B) |
| Note on PCF category | Category B: PCF value (cradle-to-gate) based on the product weight, approximately calculated and self-declared |
| Customs tariff number | 94032080 |
| EAN | 4028177813847 |
| ETIM 9 | EC000261 |
| ETIM 8 | EC000261 |
| ECLASS 8.0 | 27180101 |
| Product description | VX Baying enclosure system, WHD: 800x2000x600 mm, sheet steel, with mounting plate, single door at the front |
