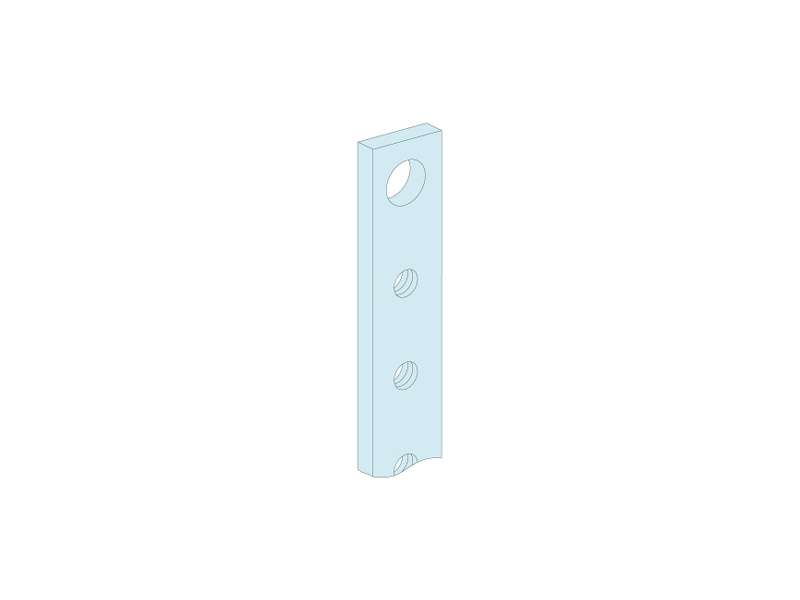

Schneider Electric 4 sabirnice sa provrtima 250A L1000 za Linergy BS sabirnicu; LVS04162
Busbar, Linergy BS, 4 threaded bars, 250A, vertical, flat bar, 20x 5mm, L1000mm...
VAT-exclusive price: 21.387,00 |
VAT-inclusive price: 25.664,40 |
Busbar, Linergy BS, 4 threaded bars, 250A, vertical, flat bar, 20x 5mm, L1000mm
| Range | Linergy |
|---|---|
| Range of product | Linergy |
| Product or component type | Busbar |
| Product name | Linergy BS |
| Range compatibility |
PrismaSeT (PrismaSeT G) enclosure PrismaSeT (PrismaSeT P) enclosure |
| Busbar description | Flat bar |
| Quantity per set | Set of 4 |
| Installation direction | Vertical, operating position: rear |
|---|---|
| installation description |
Cubicle - width 650 mm Floor-standing enclosure - width 600 mm Wall-mounted enclosure - width 600 mm Floor-standing duct - width 300 mm Wall-mounted duct - width 300 mm |
| [Ie] rated operational current | 250 A at 35 °C |
| [Icw] rated short-time withstand current | 13 kA (1 s) for 2 supports |
| [Ipk] rated peak withstand current | 40 kA |
| Busbar cross section | 20 x 5 mm |
| Length | 1000 mm |
| Width | 20 mm |
| Depth | 5 mm |
| Net weight | 3.52 kg |
| Colour | Natural |
| Type of busbar connection | M6 threaded hole |
| Connection pitch | Connection each 25 mm |
| Standards |
IEC 61439-2 IEC 61439-1 |
|---|---|
| Product certifications | ASTA |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 2.0 cm |
| Package 1 Width | 13.0 cm |
| Package 1 Length | 109.5 cm |
| Package 1 Weight | 3.487 kg |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 60 |
| Package 2 Height | 29.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 120.0 cm |
| Package 2 Weight | 221.0 kg |
