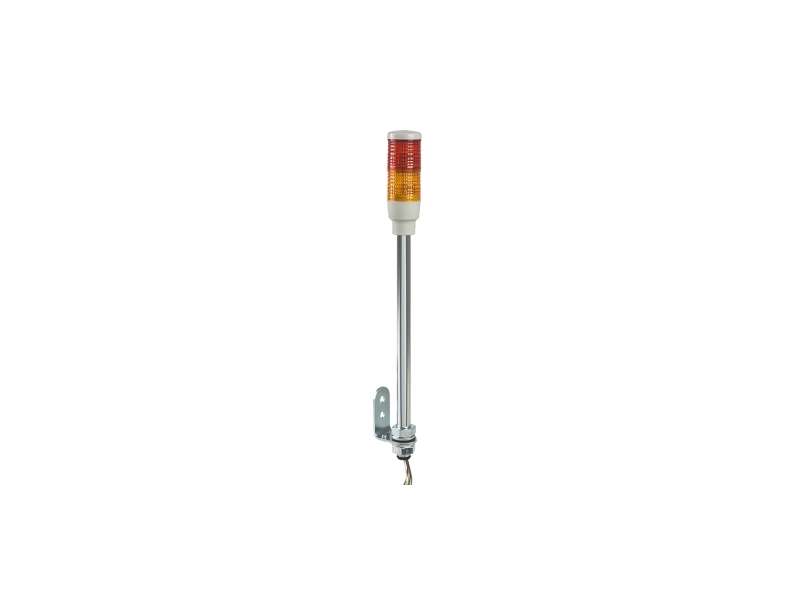

Schneider Electric 40mm svetlosna kolona CN na dršci 100-240VAC;XVC4M2
Harmony XVC, Monolithic precabled tower light, plastic, red orange, Ø40, tube mounting, steady, IP23, 100...240 V AC...
VAT-exclusive price: 27.536,00 |
VAT-inclusive price: 33.043,20 |
Harmony XVC, Monolithic precabled tower light, plastic, red orange, Ø40, tube mounting, steady, IP23, 100...240 V AC
| range of product | Harmony XVC4 |
|---|---|
| product or component type | Complete pre-wired monolithic tower light |
| beacon or indicator bank unit type | 2 illuminated units |
| sound signalling | Without |
| mounting diameter | 40 mm |
| component name | XVC |
| device short name | XVC |
| light source |
LED steady red LED steady orange |
| supply circuit type | AC |
| material |
Polycarbonate: illuminated unit ABS (acrylonitrile butadiene-styrene): base unit PBT + ABS (UL94-V0): top cover SGP (chromium-plated): support tube |
|---|---|
| mounting location | On support tube, 17 mm |
| product mounting | On support tube, 17 mm |
| [Us] rated supply voltage | 100...240 V |
| [Us] rated supply voltage | 100...240 V |
| cable cross section |
0.83 mm² 0.33 mm² |
| AWG gauge |
AWG 22 AWG 18 |
| cable length | 450 mm |
| marking | CE |
| [Uimp] rated impulse withstand voltage | 4 kV |
| current consumption | 45 mA |
| net weight | 0.75 kg |
| height | 602.2 mm |
| standards |
EN/IEC 60947-5-1 EN/IEC 60947-1 |
|---|---|
| product certifications | UL |
| protective treatment | TC |
| ambient air temperature for storage | -35…70 °C |
| ambient air temperature for operation | -10…50 °C |
| electrical shock protection class | Class I conforming to EN/IEC 61140 |
| overvoltage category | Class I conforming to EN/IEC 61140 |
| IP degree of protection | IP23 vertical surface installation conforming to EN/IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 982.0 g |
| Package 1 Height | 6.8 cm |
| Package 1 width | 6.8 cm |
| Package 1 Length | 75.5 cm |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 8.833 kg |
| Package 2 Height | 34.7 cm |
| Package 2 width | 75 cm |
| Package 2 Length | 60 cm |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 30 |
| Package 3 Weight | 35.0 kg |
| Package 3 Height | 63 cm |
| Package 3 width | 80 cm |
| Package 3 Length | 60 cm |
| Warranty | 18 months |
|---|
