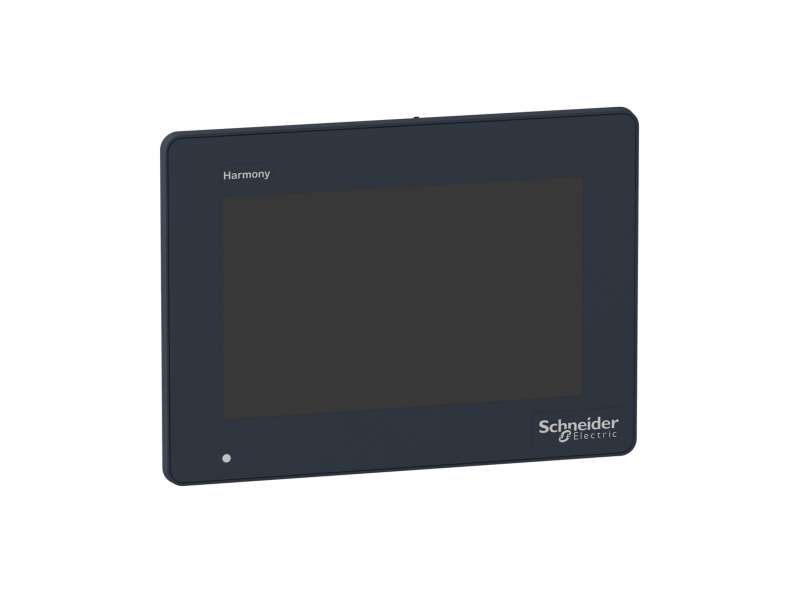

Schneider Electric 7''W ekran osetljiv na dodir Advanced Display WVGA - sa zaštitnim premazom; HMIDT351FC
7W Touch Advanced Display WVGA - coated display...
Price on request
7W Touch Advanced Display WVGA - coated display
| range of product |
Harmony GTU
|
|
|---|---|---|
| product or component type |
Advanced touchscreen panel
|
|
| terminal type |
Touchscreen display
|
| pixel resolution |
800 x 480
|
|
|---|---|---|
| touchscreen resolution |
1024 x 1024
|
|
| provided equipment |
1 flash card
|
|
| [Us] rated supply voltage |
12...24 V DC power supply
|
|
| supply voltage limits |
10.8…28.8 V
|
|
| power consumption in W |
6.5 W
|
|
| display size |
7 inch
|
|
| display type |
Colour TFT LCD
|
|
| display resolution |
800 x 480 pixels WVGA
|
|
| display colour |
262144 colors
|
|
| backlight lifespan |
50000 hours
|
|
| touch panel |
Single touch analogue resistive
|
|
| type of installation |
Indoor installation
|
|
| type of cooling |
Natural convection
|
|
| inrush current |
30 A
|
|
| cut-out dimensions |
190 (+ 1/- 0) x 135 (+ 1/- 0) mm
|
|
| width |
203.6 mm
|
|
| height |
148.6 mm
|
|
| depth |
36 mm
|
|
| net weight |
1.2 kg
|
| IP degree of protection |
IP66 front panel:
|
|
|---|---|---|
| NEMA degree of protection |
NEMA 4X front panel
|
|
| standards |
UL 508
|
|
| product certifications |
CE
|
|
| ambient air temperature for operation |
0…60 °C conforming to EN 61131-2
|
|
| ambient air temperature for storage |
-20…60 °C
|
|
| pollution degree |
2
|
|
| relative humidity |
10…90 % non-condensing
|
|
| operating altitude |
2000 m
|
|
| vibration resistance |
3.5 mm constant amplitude (f = 5…9 Hz) conforming to EN/IEC 61131-2
|
|
| shock resistance |
147 m/s² conforming to EN/IEC 61131-2
|
|
| electromagnetic compatibility |
Electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.397 kg
|
|
| Package 1 Height |
13.5 cm
|
|
| Package 1 width |
21 cm
|
|
| Package 1 Length |
26 cm
|
-
Magelis GTU HMIDT351FC
