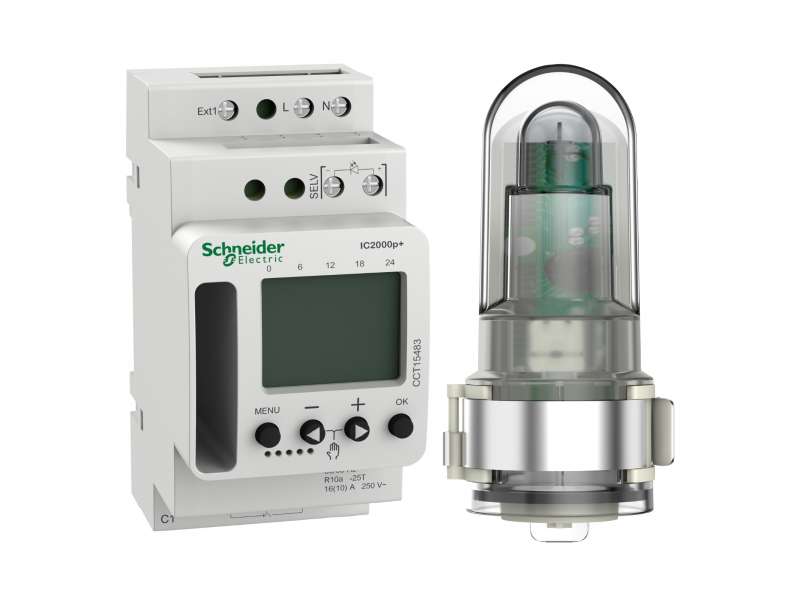

Schneider Electric Acti 9 IC2000p+ (2 - 2000 lux) programabilni svetlosni prekidač; CCT15483

Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch...

Brand: Schneider Electric
Product Code: CCT15483
Availability: Check availability

VAT-exclusive price: 26.979,00

VAT-inclusive price: 32.374,80

Qnt:

Acti9 IC2000p+ (2 - 2000 lux) programmable twilight switch

Main
range of product	Acti9
Product name	Acti9 IC
Product or component type	Programmable twilight switch with time switch function
Device short name	IC2000P+
Device application	Building
Provided equipment	Twilight sensor outdoor
Load type	Incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2300 VA serial-compensated fluorescent tube: 2300 VA parallel compensated fluorescent lamp: 730 VA (80 µF) compact fluorescent lamp: 170 W < 2 W LED lamp: 30 W > 2 W LED lamp: 200 W
language	English French Dutch Italian Russian Hungarian Spanish Bulgarian Romanian Polish German Czech Croatian Ukrainian Portuguese Danish Finnish Swedish

Complementary
Number of channels	1
Maximum power consumption in W	0.8 W standby
[Ue] rated operational voltage	230 V AC +10 % -15 % at 50/60 Hz
Maximum switching current	10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1
Minimum switching current	10 mA 230 V AC 100 mA 24 V AC/DC
Electrical insulation class	Class II
Output type	Dry contact
Accuracy	+/- 0.25 s/day 25 °C
Contacts type and composition	C/O
maximum number of switchings	56
Function available	External input for override Holiday schedules Automatic winter/summer time changeover Code lock function On/off switching times Switch preselection
Control type	By brightness detection By time schedule
Control button type	4 push-buttons
Time delay range	20...140 s (on) 20...140 s (off)
Backup time	10 years
Type of setting	Weekly programming
Light intensity adjustment	2…2000 lux
Connections - terminals	2 x 0.5…2.5 mm² screw terminals solid or flexible 1 x 2.5 mm² screw terminals solid or flexible with sleeve
Mounting support	TH35 DIN rail conforming to EN 60715
Height	92.6 mm
Width	45 mm
Depth	66.7 mm
Net weight	150 g
Overvoltage category	Class 3
Marking	CE

Environment
Ambient air temperature for operation	-25…55 °C
ambient air temp for storage/transportation	-30…70 °C
Relative humidity	90 %, non-condensing
IP degree of protection	IP20
Standards	EN 60669-2-1

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.0 cm
Package 1 Width	10.5 cm
Package 1 Length	10.5 cm
Package 1 Weight	244.0 g
Unit Type of Package 2	S03
Number of Units in Package 2	22
Package 2 Height	30 cm
Package 2 Width	30 cm
Package 2 Length	40 cm
Package 2 Weight	5.875 kg
Package 3 Height	80 cm
