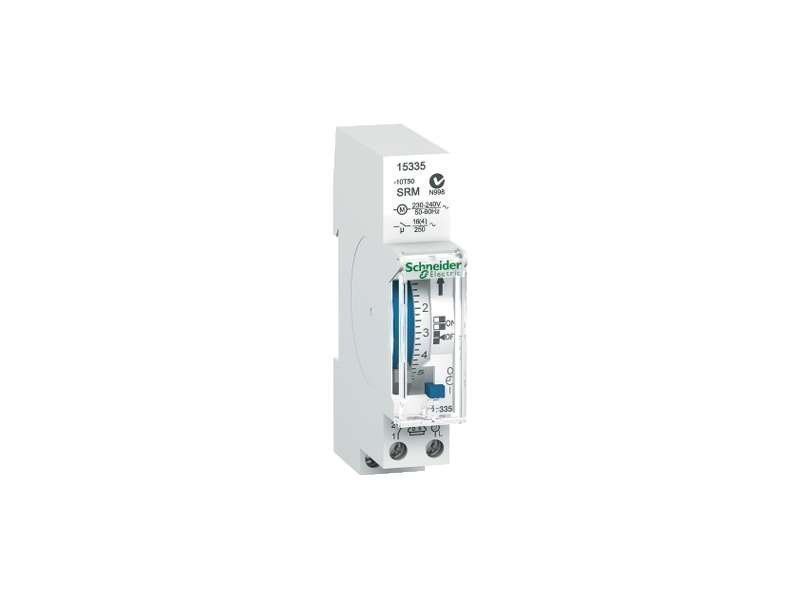

Schneider Electric Acti 9 - IH - mehanički vremenski prekidač - 24 h - bez memorije;15335
Acti9 - IH - mechanical time switch - 24 h - without memory...
VAT-exclusive price: 4.406,00 |
VAT-inclusive price: 5.287,20 |
Acti9 - IH - mechanical time switch - 24 h - without memory
| range of product | Acti 9 |
|---|---|
| product name | Acti 9 IH |
| device short name | IH |
| product or component type | Mechanical time switch |
| Number of channels | 1 |
| function available | Manual time changeover |
| device application | Building |
|---|---|
| load type |
Parallel-corrected fluorescent tube 5 x 58 W 4.7 µF Parallel-corrected fluorescent tube 7 x 40 W 7 µF Parallel-corrected fluorescent tube 2 x 100 W 18 µF 230 V AC halogen lamp 1000 W 230 V AC incandescent lamp 1000 W Fluocompact lamp 700 VA Compact fluorescent lamp 150 W LED lamp < 2 W 30 W LED lamp > 2 W 300 W |
| cycle duration | 24 h |
| maximum number of switchings | 48 on - 48 off |
| minimum interval duration | 15 min |
| type of setting | Manual time changeover |
| measurement accuracy | +/- 1 s/day 20 °C |
| power consumption in W | 0.5 W |
| maximum switching current |
16 A - 250 V AC pf = 1 4 A - 250 V AC pf = 0.6 |
| [Ue] rated operational voltage | 230 V AC at 50 Hz |
| mounting support | DIN rail |
| 9 mm pitches | 2 |
| colour tint | White (RAL 9003) |
| connections - terminals | Screw terminals |
| width | 18 mm |
| height | 90 mm |
| depth | 66 mm |
| net weight | 0.097 kg |
| ambient air temperature for operation | -25…50 °C |
|---|---|
| IP degree of protection | Terminals: IP20 B |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 82.0 g |
| Package 1 Height | 2.1 cm |
| Package 1 width | 7.1 cm |
| Package 1 Length | 9.9 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 100 |
| Package 2 Weight | 8.695 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
