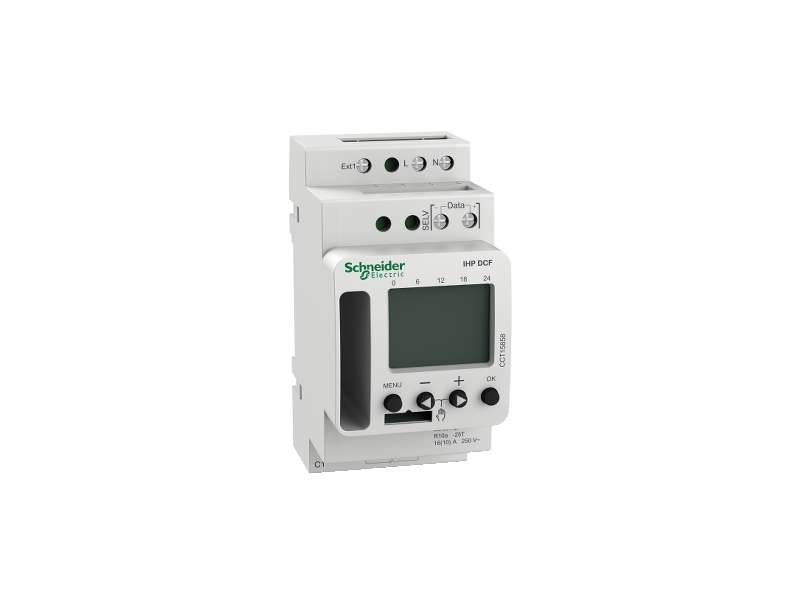

Schneider Electric Acti 9 IHP DCF (24h/7d) SMART programabilni vremenski prekidač;CCT15858
Acti9 IHP DCF (24h/7d) SMART programmable time switch...
VAT-exclusive price: 34.814,00 |
VAT-inclusive price: 41.776,80 |
Acti9 IHP DCF (24h/7d) SMART programmable time switch
| range of product | Acti 9 |
|---|---|
| product name | Acti 9 IHP |
| device short name | IHP DCF |
| product or component type | Programmable digital time switch |
| device application | Building |
| Number of channels | 1 |
| Available equipment | Memory stick |
| user language |
English French German Dutch Italian Spanish Danish Norwegian Swedish Finnish Polish Czech Romanian Hungarian Slovene Croatian Serbian Bulgarian |
| load type |
Incandescent lamp: 2600 W halogen lamp: 2600 W non-corrected fluorescent tube: 2600 VA serial-compensated fluorescent tube: 2600 VA parallel compensated fluorescent lamp: 400 VA (48 µF) compact fluorescent lamp: 400 W < 2 W LED lamp: 25 W > 2 W LED lamp: 200 W |
|---|---|
| maximum power consumption in W | 0.8 W standby |
| maximum switching current |
10 A - 250 V AC pf = 0.6 16 A - 250 V AC pf = 1 |
| minimum switching current |
10 mA 230 V AC 100 mA 24 V AC/DC |
| [Ue] rated operational voltage | 230 V AC +10 % -15 % at 50/60 Hz |
| electrical insulation class | Class II |
| output type | Dry contact |
| accuracy | +/- 0.25 s/day 25 °C |
| contacts type | C/O |
| cycle duration | 24 hours + 7 days |
| maximum number of switchings | 84 |
| minimum interval duration | 1 s |
| function available |
External input for override per channel Code lock function Holiday schedules Automatic winter/summer time changeover On/off switching times Pulse programming Cycle programming Switch preselection Time synchronisation via DCF antenna possible |
| control button type | 4 push-buttons |
| display type | Backlit LCD |
| information displayed | Operating time counter |
| backup time | 10 years time and program saving |
| type of setting |
Weekly programming Random program 2 |
| connections - terminals |
2 x 0.5…2.5 mm² screw terminals solid or flexible 1 x 2.5 mm² screw terminals solid or flexible with sleeve |
| mounting support | TH35 DIN rail conforming to EN 60715 |
| width | 45 mm |
| height | 92.6 mm |
| depth | 66.7 mm |
| net weight | 136 g |
| marking | CE |
| overvoltage category | Class 3 |
| function | Pulse programming, random function, external input for override |
| absence for holidays | Yes |
| time changeover | Automatic |
| updated by | DCF77 |
| standards | EN 60730-2-7:2010 |
|---|---|
| ambient air temperature for operation | -25…55 °C |
| ambient air temp for storage/transportation | -30…70 °C |
| relative humidity | 90 %, non-condensing |
| IP degree of protection | IP20 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 178.0 g |
| Package 1 Height | 6.7 cm |
| Package 1 width | 8 cm |
| Package 1 Length | 10.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 40 |
| Package 2 Weight | 7.624 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
