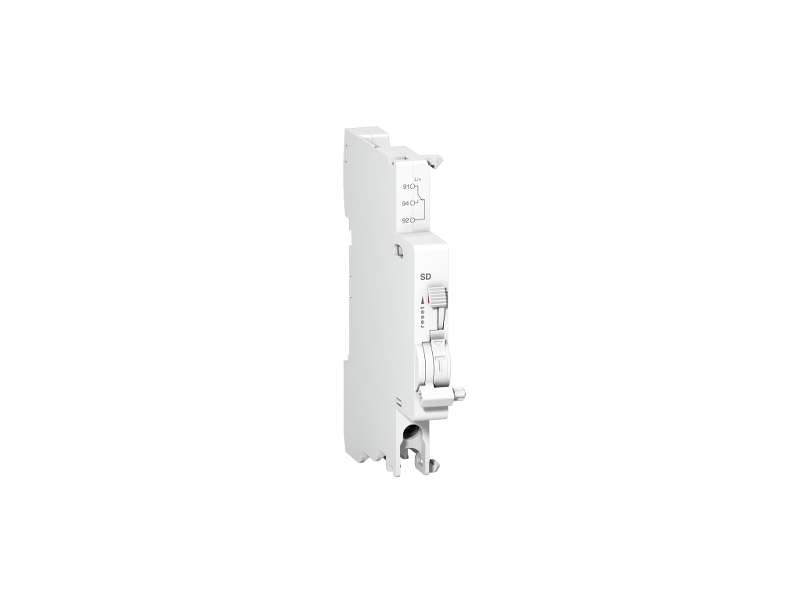

Schneider Electric Acti 9 - pomoćni alarmni kontakt SD AC DC;A9N26927
Acti9 - Auxiliary contact alarm SD ac dc...
VAT-exclusive price: 3.704,00 |
VAT-inclusive price: 4.444,80 |
Acti9 - Auxiliary contact alarm SD ac dc
| range of product | Acti9 |
|---|---|
| product or component type | Fault contact |
| device short name | SD |
| signal contacts composition | 1 C/O |
| [In] rated current |
3 A: 380...415 V AC - 50/60 Hz 6 A: 220...240 V AC - 50/60 Hz 1 A: 130 V DC 1.5 A: 60 V DC 2 A: 48 V DC 6 A: 24 V DC |
| 9 mm pitches | 1 |
| range compatibility |
Acti9 DPN Vigi Acti9 iDPN Vigi Acti9 C60H-DC Acti 9 C60PV-DC Acti 9 C40 Acti9 ID C40 Acti 9 C120 Acti 9 DT40 Acti 9 DT60 Acti9 IDc Acti 9 C120NA-DC Acti 9 iDPN Acti9 ITG40 Acti 9 SW60-DC Acti 9 C60NA-DC Acti 9 C40 Vigi Acti 9 DT40 Vigi |
|---|---|
| mounting mode | Fixed |
| mounting support | DIN rail |
| comb busbar and distribution block compatibility | Top: YES |
| height | 85.3 mm |
| width | 9 mm |
| depth | 73.5 mm |
| net weight | 30 g |
| colour | White |
| connections - terminals |
Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule |
| wire stripping length | 9 mm |
| tightening torque | 1 N.m |
| standards | EN/IEC 60947-5-1 |
|---|---|
| product certifications |
ASTA LCIE KEMA ASEFA |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| ambient air temperature for operation | -25…50 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 38.0 g |
| Package 1 Height | 2.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.4 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 108 |
| Package 2 Weight | 5.13 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 12 |
| Package 3 Weight | 514.0 g |
| Package 3 Height | 8.7 cm |
| Package 3 width | 10.0 cm |
| Package 3 Length | 26.5 cm |
| Warranty | 18 |
|---|
| range of product | Acti9 |
|---|---|
| product or component type | Fault contact |
| device short name | SD |
| signal contacts composition | 1 C/O |
| [In] rated current |
3 A: 380...415 V AC - 50/60 Hz 6 A: 220...240 V AC - 50/60 Hz 1 A: 130 V DC 1.5 A: 60 V DC 2 A: 48 V DC 6 A: 24 V DC |
| 9 mm pitches | 1 |
| range compatibility |
Acti9 DPN Vigi Acti9 iDPN Vigi Acti9 C60H-DC Acti 9 C60PV-DC Acti 9 C40 Acti9 ID C40 Acti 9 C120 Acti 9 DT40 Acti 9 DT60 Acti9 IDc Acti 9 C120NA-DC Acti 9 iDPN Acti9 ITG40 Acti 9 SW60-DC Acti 9 C60NA-DC Acti 9 C40 Vigi Acti 9 DT40 Vigi |
|---|---|
| mounting mode | Fixed |
| mounting support | DIN rail |
| comb busbar and distribution block compatibility | Top: YES |
| height | 85.3 mm |
| width | 9 mm |
| depth | 73.5 mm |
| net weight | 30 g |
| colour | White |
| connections - terminals |
Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible Screw clamp terminal (bottom) 1 cable(s) 0.5…2.5 mm² - rigid Screw clamp terminal (bottom) 2 cable(s) 1.5 mm² - flexible with ferrule |
| wire stripping length | 9 mm |
| tightening torque | 1 N.m |
| standards | EN/IEC 60947-5-1 |
|---|---|
| product certifications |
ASTA LCIE KEMA ASEFA |
| IP degree of protection | IP20 conforming to EN/IEC 60947-5-1 |
| pollution degree | 3 conforming to EN/IEC 60947-5-1 |
| tropicalisation | 2 conforming to EN/IEC 60947-5-1 |
| ambient air temperature for operation | -25…50 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 38.0 g |
| Package 1 Height | 2.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 9.4 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 108 |
| Package 2 Weight | 5.13 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 12 |
| Package 3 Weight | 514.0 g |
| Package 3 Height | 8.7 cm |
| Package 3 width | 10.0 cm |
