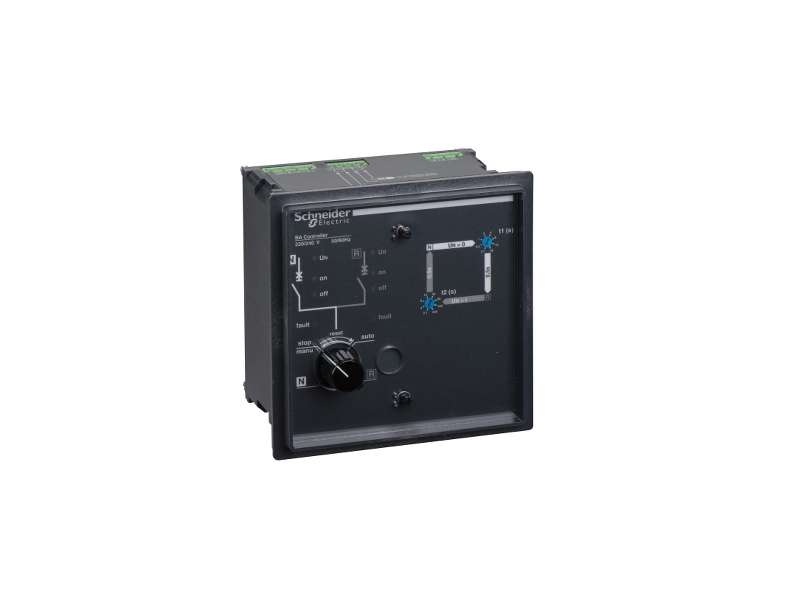

Schneider Electric Automatski kontroler - BA - 220..240 V;29376
automatic controller - BA - 220..240 V...
Price on request
automatic controller - BA - 220..240 V
| product name | BA |
|---|---|
| product or component type | Control unit |
| [Us] rated supply voltage | 220...240 V AC at 50/60 Hz |
|---|---|
| operating mode |
Stop (both normal and replacement source off) Forced operation on normal source Forced operation on replacement source Automatic operation |
| interlocked device |
Compact NS630b...1600 MasterPact NW Compact NS100...630 MasterPact NT |
| selection modes |
Circuit breaker on R Circuit breaker on N |
| test function | By opening the P25M circuit breaker supplying the controller |
| complementary function |
Additional contact: transfer to replacement source only if contact is closed Voluntary transfer to replacement source (e.g. energy management commands) |
| local signalling |
Fault trip Off On |
| input type | Contacts customer voluntary order to transfer to source R |
| output type | Contacts customer: indication of operation in automatic or stop mode |
| [Ith] conventional free air thermal current | 8 A |
| [Ie] rated operational current |
AC-12: 4 A AC 440 V AC-12: 5 A AC 380/415 V DC-13: 2 A 24 V |
| standards | IEC 947-5-1 |
|---|---|
| IP degree of protection |
IP20 connectors: conforming to EN 60529 IP40 front: conforming to EN 60529 IP30 side: conforming to EN 60529 |
| IK degree of protection | Front: IK07 conforming to EN 50102 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.27 kg |
| Package 1 Height | 15.2 cm |
| Package 1 width | 15.5 cm |
| Package 1 Length | 18.0 cm |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 6 |
| Package 2 Weight | 8.23 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Warranty | 18 months |
|---|
