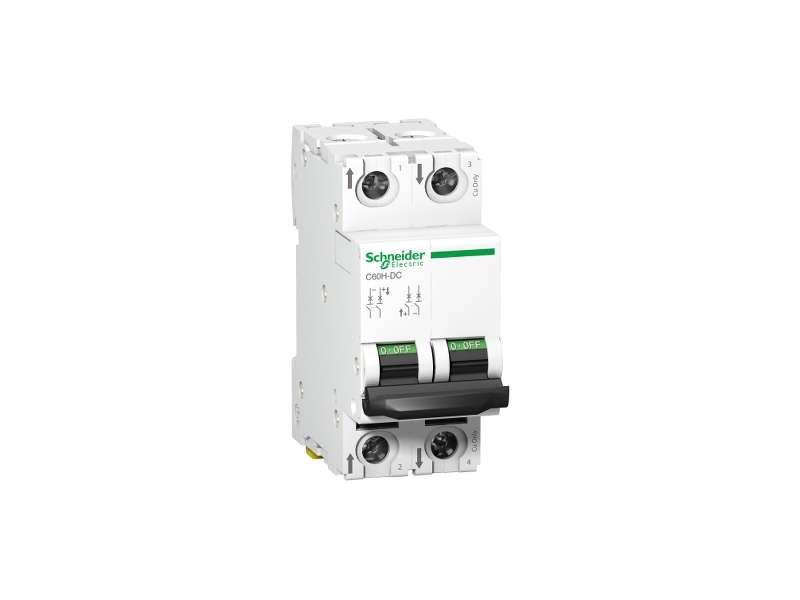

Schneider Electric Automatski prekidač - C60H - 2P - 0.5 A - C kriva;A9N61520
miniature circuit breaker - C60H - 2 poles - 0.5 A - C curve...
VAT-exclusive price: 4.459,00 |
VAT-inclusive price: 5.350,80 |
miniature circuit breaker - C60H - 2 poles - 0.5 A - C curve
| range | Acti 9 |
|---|---|
| product name | Acti9 C60H-DC |
| product or component type | Miniature circuit-breaker |
| device short name | C60H-DC |
| device application | Distribution |
| poles description | 2P |
| number of protected poles | 2 |
| [In] rated current | 0.5 A at 25 °C |
| network type | DC |
| trip unit technology | Thermal-magnetic |
| curve code | C |
| breaking capacity |
10 kA Icu at 440 V DC conforming to EN 60947-2 10 kA Icu at 440 V DC conforming to IEC 60947-2 6 kA Icu at 500 V DC conforming to EN 60947-2 6 kA Icu at 500 V DC conforming to IEC 60947-2 20 kA Icu at 220 V DC conforming to GB 14048.2 20 kA Icu at 220 V DC conforming to IEC 60947-2 20 kA Icu at 250 V DC conforming to GB 14048.2 20 kA Icu at 250 V DC conforming to IEC 60947-2 |
| utilisation category |
Category A conforming to EN 60947-2 Category A conforming to IEC 60947-2 |
| suitability for isolation |
Yes conforming to IEC 60947-2 Yes conforming to EN 60947-2 |
| network frequency | 50/60 Hz |
|---|---|
| [Ue] rated operational voltage | 500 V DC |
| [Ics] rated service breaking capacity |
15 kA 75 % conforming to EN 60947-2 - 220 V DC 15 kA 75 % conforming to IEC 60947-2 - 220 V DC 15 kA 75 % conforming to EN 60947-2 - 250 V DC 15 kA 75 % conforming to IEC 60947-2 - 250 V DC 4.5 kA 75 % conforming to EN 60947-2 - 500 V DC 4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC 7.5 kA 75 % conforming to EN 60947-2 - 440 V DC 7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC |
| [Ui] rated insulation voltage |
500 V DC conforming to IEC 60947-2 500 V DC conforming to EN 60947-2 |
| [Uimp] rated impulse withstand voltage |
6 kV conforming to EN 60947-2 6 kV conforming to IEC 60947-2 |
| contact position indicator | Yes |
| control type | Toggle |
| local signalling | ON/OFF indication |
| mounting mode | Fixed |
| mounting support | 35 mm symmetrical DIN rail |
| comb busbar and distribution block compatibility | Top or bottom: standard |
| 9 mm pitches | 4 |
| net weight | 0.256 kg |
| colour | White |
| mechanical durability | 20000 cycles |
| electrical durability |
3000 cycles 500 V DC 6000 cycles 500 V DC |
| provision for padlocking | Padlockable |
| locking options description | In position O |
| tightening torque | Power circuit: 2.5 N.m top or bottom |
| earth-leakage protection | Without |
| standards |
EN 60947-2 IEC 60947-2 |
|---|---|
| pollution degree |
3 conforming to EN 60947-2 3 conforming to IEC 60947-2 |
| overvoltage category | IV |
| tropicalisation | 2 conforming to IEC 60068-2 |
| operating altitude | 2000 m |
| ambient air temperature for operation | -25…70 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 240.0 g |
| Package 1 Height | 7.3 cm |
| Package 1 width | 3.2 cm |
| Package 1 Length | 8.5 cm |
| Unit Type of Package 2 | PAL |
| Number of Units in Package 2 | 576 |
| Package 2 Weight | 142.272 kg |
| Package 2 Height | 60.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 576.0 cm |
| Unit Type of Package 3 | BB1 |
| Number of Units in Package 3 | 6 |
| Package 3 Weight | 1.442 kg |
| Package 3 Height | 9.0 cm |
| Package 3 width | 8.0 cm |
| Package 3 Length | 22.0 cm |
| Warranty | 18 |
|---|
