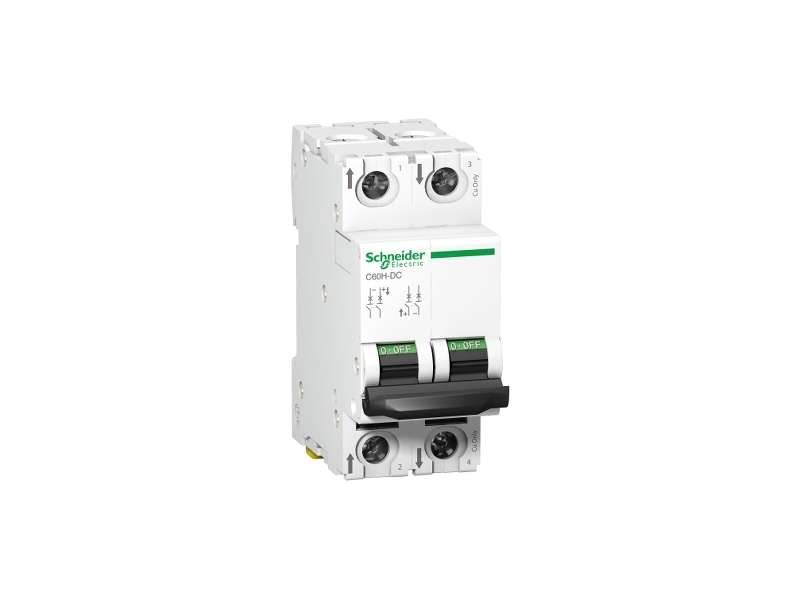

miniature circuit breaker - C60H - 2 poles - 6 A - C curve
Main
|
range |
Acti 9 |
|
product name |
Acti9 C60H-DC |
|
product or component type |
Miniature circuit-breaker |
|
device short name |
C60H-DC |
|
device application |
Distribution |
|
poles description |
2P |
|
number of protected poles |
2 |
|
[In] rated current |
6 A at 25 °C |
|
network type |
DC |
|
trip unit technology |
Thermal-magnetic |
|
curve code |
C |
|
breaking capacity |
10 kA Icu at 440 V DC conforming to EN 60947-2
10 kA Icu at 440 V DC conforming to IEC 60947-2
6 kA Icu at 500 V DC conforming to EN 60947-2
6 kA Icu at 500 V DC conforming to IEC 60947-2
20 kA Icu at 220 V DC conforming to GB 14048.2
20 kA Icu at 220 V DC conforming to IEC 60947-2
20 kA Icu at 250 V DC conforming to GB 14048.2
20 kA Icu at 250 V DC conforming to IEC 60947-2 |
|
utilisation category |
Category A conforming to EN 60947-2
Category A conforming to IEC 60947-2 |
|
suitability for isolation |
Yes conforming to IEC 60947-2
Yes conforming to EN 60947-2 |
Complementary
|
network frequency |
50/60 Hz |
|
[Ue] rated operational voltage |
500 V DC |
|
[Ics] rated service breaking capacity |
15 kA 75 % conforming to EN 60947-2 - 220 V DC
15 kA 75 % conforming to IEC 60947-2 - 220 V DC
15 kA 75 % conforming to EN 60947-2 - 250 V DC
15 kA 75 % conforming to IEC 60947-2 - 250 V DC
4.5 kA 75 % conforming to EN 60947-2 - 500 V DC
4.5 kA 75 % conforming to IEC 60947-2 - 500 V DC
7.5 kA 75 % conforming to EN 60947-2 - 440 V DC
7.5 kA 75 % conforming to IEC 60947-2 - 440 V DC |
|
[Ui] rated insulation voltage |
500 V DC conforming to IEC 60947-2
500 V DC conforming to EN 60947-2 |
|
[Uimp] rated impulse withstand voltage |
6 kV conforming to EN 60947-2
6 kV conforming to IEC 60947-2 |
|
contact position indicator |
Yes |
|
control type |
Toggle |
|
local signalling |
ON/OFF indication |
|
mounting mode |
Fixed |
|
mounting support |
35 mm symmetrical DIN rail |
|
comb busbar and distribution block compatibility |
Top or bottom: standard |
|
9 mm pitches |
4 |
|
net weight |
0.256 kg |
|
colour |
White |
|
mechanical durability |
20000 cycles |
|
electrical durability |
3000 cycles 500 V DC
6000 cycles 500 V DC |
|
provision for padlocking |
Padlockable |
|
locking options description |
In position O |
|
tightening torque |
Power circuit: 2.5 N.m top or bottom |
|
earth-leakage protection |
Without |
Environment
|
standards |
EN 60947-2
IEC 60947-2 |
|
pollution degree |
3 conforming to EN 60947-2
3 conforming to IEC 60947-2 |
|
overvoltage category |
IV |
|
tropicalisation |
2 conforming to IEC 60068-2 |
|
operating altitude |
2000 m |
|
ambient air temperature for operation |
-25…70 °C |
|
ambient air temperature for storage |
-40…85 °C |
Packing Units
|
Unit Type of Package 1 |
PCE |
|
Number of Units in Package 1 |
1 |
|
Package 1 Weight |
225.0 g |
|
Package 1 Height |
7.5 cm |
|
Package 1 width |
3.6 cm |
|
Package 1 Length |
8.5 cm |
|
Unit Type of Package 2 |
P12 |
|
Number of Units in Package 2 |
576 |
|
Package 2 Weight |
149.624 kg |
|
Package 2 Height |
80.0 cm |
|
Package 2 width |
80.0 cm |
|
Package 2 Length |
120.0 cm |
|
Unit Type of Package 3 |
BB1 |
|
Number of Units in Package 3 |
6 |
|
Package 3 Weight |
1.398 kg |
|
Package 3 Height |
8.0 cm |
|
Package 3 width |
9.0 cm |
|
Package 3 Length |
22.0 cm |
Contractual warranty
|
Warranty |
18 months |
