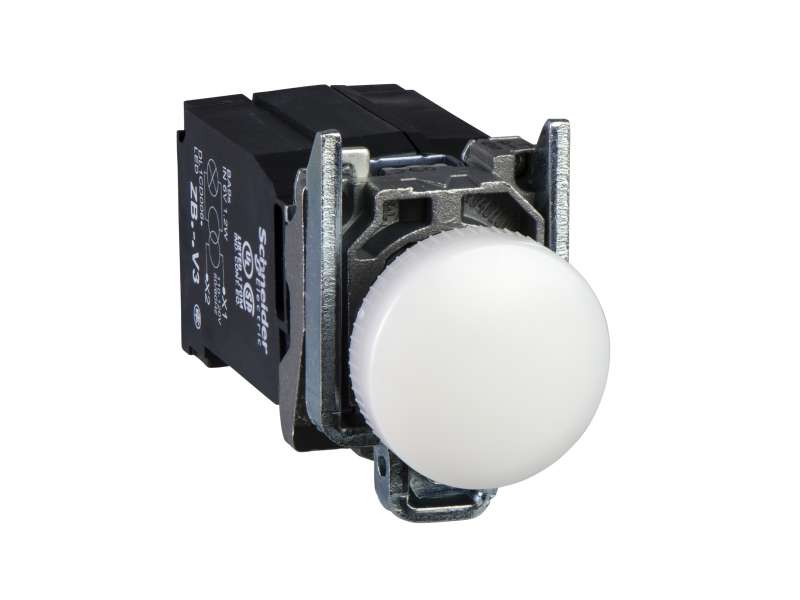

Schneider Electric Bela kompletna signalna lampica Ø22 ravna sočiva sa BA9s sijalicom 110...120V;XB4BV31
White complete pilot light Ø22 plain lens with BA9s bulb 110...120V...
VAT-exclusive price: 4.085,00 |
VAT-inclusive price: 4.902,00 |
White complete pilot light Ø22 plain lens with BA9s bulb 110...120V
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Pilot light
|
|
| device short name |
XB4
|
|
| bezel material |
Chromium plated metal
|
|
| fixing collar material |
Zamak
|
|
| head type |
Standard
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| shape of signaling unit head |
Round
|
|
| cap/operator or lens colour |
White
|
|
| operator additional information |
With plain lens
|
|
| light source |
Incandescent
|
|
| bulb base |
BA 9s
|
|
| light block supply |
Via integral transformer 1.2 VA 6 V
|
|
| [Us] rated supply voltage |
110...120 V AC at 50/60 Hz
|
| height |
47 mm
|
|
|---|---|---|
| width |
30 mm
|
|
| depth |
78 mm
|
|
| terminals description ISO n°1 |
(X1-X2)PL
|
|
| net weight |
0.152 kg
|
|
| resistance to high pressure washer |
7000000 Pa at 55 °C, distance : 0.1 m
|
|
| connections - terminals |
Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN/IEC 60947-1
Screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end conforming to EN/IEC 60947-1 |
|
| [Ui] rated insulation voltage |
600 V (pollution degree 3) conforming to EN 60947-1
|
|
| [Uimp] rated impulse withstand voltage |
EN 60947-1 6 kV
|
|
| signalling type |
Steady
|
|
| device presentation |
Complete product
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…55 °C
|
|
| electrical shock protection class |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK06 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-4
EN/IEC 60947-5-5 EN/IEC 60947-5-1 UL 508 JIS C8201-5-1 EN/IEC 60947-1 CSA C22.2 No 14 JIS C8201-1 |
|
| product certifications |
UL listed
CSA |
|
| vibration resistance |
5 gn (f= 12…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
146 g
|
|
| Package 1 Height |
8.2 cm
|
|
| Package 1 width |
5.2 cm
|
|
| Package 1 Length |
3.2 cm
|
-
Harmony XB4 XB4BV31
