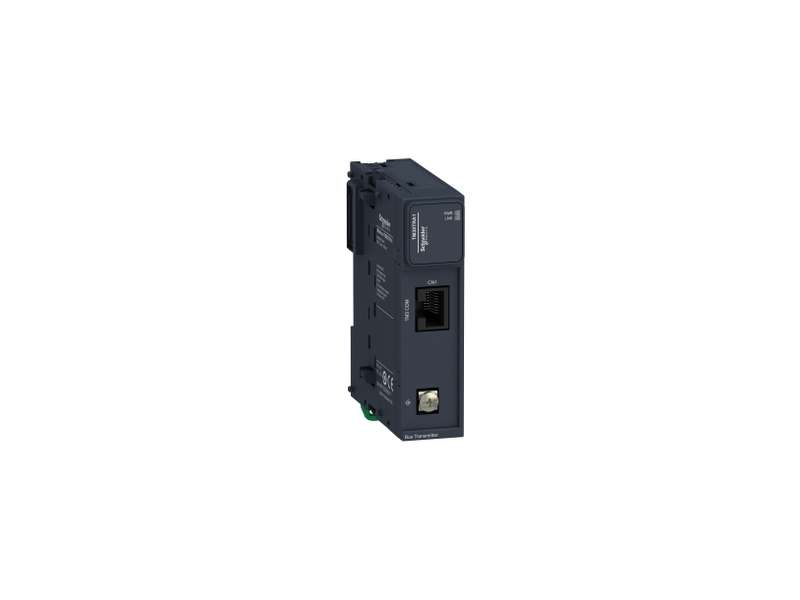

Schneider Electric Bus predajnik modul TM3;TM3XTRA1

Remote transmitter module, Modicon TM3,...

Brand: Schneider Electric
Product Code: TM3XTRA1
Availability: Check availability

VAT-exclusive price: 9.652,00

VAT-inclusive price: 11.582,40

Qnt:

Description
Specification

Remote transmitter module, Modicon TM3,

Main
range of product	Modicon TM3
product or component type	Remote transmitter module
range compatibility	Modicon M241 Modicon M251 Modicon M221 Modicon M262

Complementary
current consumption	100 mA at 5 V DC via bus connector at state on 30 mA at 5 V DC via bus connector at state off
maximum power dissipation in W	0.6 W
cable distance between devices	0.5…5 mm extension cable with 2 RJ45 conductor between receiver and transmitter
local signalling	1 LED (green) for power supply 1 LED (green) for link status
electrical connection	RJ45 connector for connecting the bus receiver Screw connector terminal for connecting the functional ground
marking	CE
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 6 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	73.3 mm
width	23.65 mm
net weight	0.065 kg

Environment
standards	Class I Division 2 Groups A/B/C/D CSA C22.2 No 213 Class I Division 2 Groups A/B/C UL 1604 CSA C22.2 No 142 IEC 61131-2 UL 508
product certifications	Merchant Navy C-Tick GOST CSA HazLoc
ambient air temperature for operation	-10…55 °C (horizontal installation) -10…50 °C (vertical installation)
ambient air temperature for storage	-40…70 °C
relative humidity	5…95 % without condensation
IP degree of protection	IP20 with protective cover in place
pollution degree	2
operating altitude	0...2000 m
storage altitude	0…3000 m
vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel
shock resistance	15 gn for 11 ms

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	163.0 g
Package 1 Height	7.5 cm
Package 1 width	12.5 cm
Package 1 Length	10.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Weight	1.783 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Main
range of product	Modicon TM3
product or component type	Remote transmitter module
range compatibility	Modicon M241 Modicon M251 Modicon M221 Modicon M262

Complementary
current consumption	100 mA at 5 V DC via bus connector at state on 30 mA at 5 V DC via bus connector at state off
maximum power dissipation in W	0.6 W
cable distance between devices	0.5…5 mm extension cable with 2 RJ45 conductor between receiver and transmitter
local signalling	1 LED (green) for power supply 1 LED (green) for link status
electrical connection	RJ45 connector for connecting the bus receiver Screw connector terminal for connecting the functional ground
marking	CE
resistance to electrostatic discharge	8 kV in air conforming to EN/IEC 61000-4-2 6 kV on contact conforming to EN/IEC 61000-4-2
resistance to electromagnetic fields	10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 1 V/m 2...2.7 GHz conforming to EN/IEC 61000-4-3
resistance to conducted disturbances	10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL)
electromagnetic emission	Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011
mounting support	Top hat type TH35-15 rail conforming to IEC 60715 Top hat type TH35-7.5 rail conforming to IEC 60715 plate or panel with fixing kit
height	90 mm
depth	73.3 mm
width	23.65 mm
net weight	0.065 kg

Environment
standards	Class I Division 2 Groups A/B/C/D CSA C22.2 No 213 Class I Division 2 Groups A/B/C UL 1604 CSA C22.2 No 142 IEC 61131-2 UL 508
product certifications	Merchant Navy C-Tick GOST CSA HazLoc
ambient air temperature for operation	-10…55 °C (horizontal installation) -10…50 °C (vertical installation)
ambient air temperature for storage	-40…70 °C
relative humidity	5…95 % without condensation
IP degree of protection	IP20 with protective cover in place
pollution degree	2
operating altitude	0...2000 m
storage altitude	0…3000 m
vibration resistance	3.5 mm at 5…8.4 Hz on DIN rail 3 gn at 8.4…150 Hz on DIN rail 3.5 mm at 5…8.4 Hz on panel 3 gn at 8.4…150 Hz on panel
shock resistance	15 gn for 11 ms

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	163.0 g
Package 1 Height	7.5 cm
Package 1 width	12.5 cm
Package 1 Length	10.5 cm
Unit Type of Package 2	S03
Number of Units in Package 2	8
Package 2 Weight	1.783 kg
Package 2 Height	30.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
