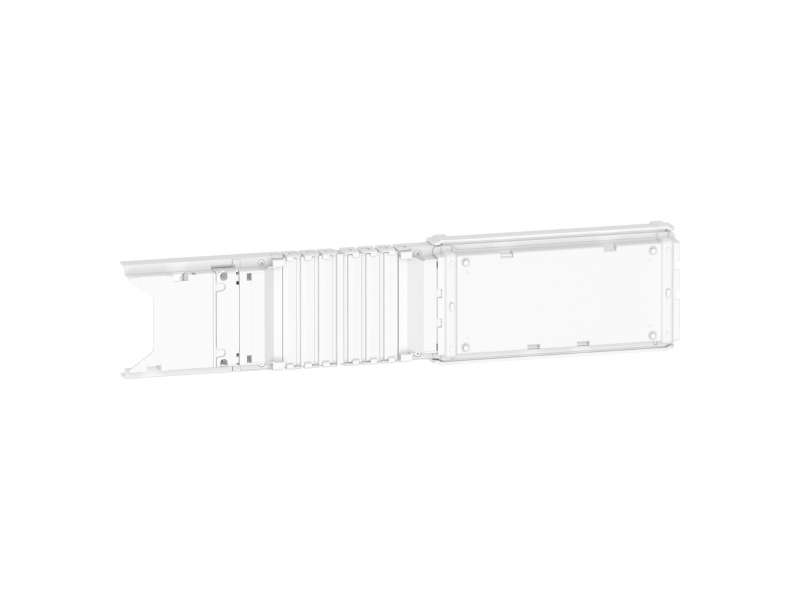

Schneider Electric Canalis - fleks.upravni lakat- 100A - 2D - unutrašnji/spoljašnji 80...180° ugao
FLEXIBLE EDGEWISE ELBOWS 100A...
VAT-exclusive price: 24.782,00 |
VAT-inclusive price: 29.738,40 |
FLEXIBLE EDGEWISE ELBOWS 100A
| range of product | Canalis |
|---|---|
| product name | KN |
| product or component type | Elbow |
| busbar description | Flexible elbow |
| product compatibility | KN |
| direction change type | 2 dimensions |
| [Ie] rated operational current | 100 A at 35 °C |
| device application | Low power distribution |
|---|---|
| thermal stress limit | 8000 kA².s |
| maximum radiated magnetic field | 186 pT |
| [Ue] rated operational voltage | 230...500 V |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage | 500 V |
| [Icw] rated short-time withstand current | 2.8 kA |
| [Ipk] rated peak withstand current | 14 kA |
| THDI |
0…15 % 100 A 15…33 % 80 A 33…100 % 63 A |
| network frequency | 50/60 Hz |
| control type | Without |
| number of circuits | 1 |
| mounting mode | By screws |
| standards |
IEC 60439-2 IEC 61439-6 |
| operating angle | 80…180 ° |
| length | 355 mm |
| colour | White (RAL 9001) |
| net weight | 1.3 kg |
| IP degree of protection | IP55 conforming to IEC 60529 |
|---|---|
| IK degree of protection | IK08 conforming to IEC 62262 |
| ambient air temperature for operation | 0…35 °C without derating |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.037 kg |
| Package 1 Height | 4 cm |
| Package 1 width | 11 cm |
| Package 1 Length | 54.5 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 4 |
| Package 2 Weight | 10.546 kg |
| Package 2 Height | 26 cm |
| Package 2 width | 60 cm |
| Package 2 Length | 80 cm |
| Unit Type of Package 3 | PAL |
| Number of Units in Package 3 | 48 |
| Package 3 Weight | 66 kg |
| Package 3 Height | 62 cm |
| Package 3 width | 62 cm |
| Package 3 Length | 92 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNA100DL4
