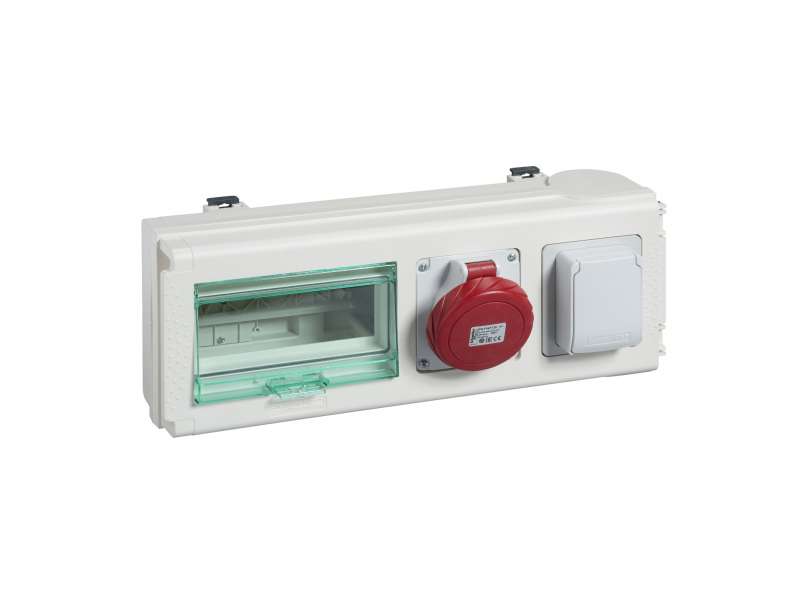

Schneider Electric Canalis - utična kutija - 32A- 2 IEC indust. utičnice za KNB - 8 modula od 18mm
TAPOFF UNIT 32A WITH 2 IEC SOCKETS...
VAT-exclusive price: 15.663,00 |
VAT-inclusive price: 18.795,60 |
TAPOFF UNIT 32A WITH 2 IEC SOCKETS
| range of product | Canalis |
|---|---|
| product name | KN |
| product or component type | Tap-off unit |
| product compatibility | Modular device |
| [Ie] rated operational current | 32 A at 35 °C |
| tap-off unit socket description | Industrial 16A 2P+T 230V |
| tap-off unit 2nd socket description | Industrial 16A 3P+N+T 415V |
| tap-off unit polarity | 3L+N+PE |
| provided equipment | Blanking plate |
| colour | White (RAL 9001) |
| device application |
Low power distribution Power socket distribution |
|---|---|
| [Ue] rated operational voltage | 230...500 V depending on protective device |
| [Uimp] rated impulse withstand voltage | 6 kV |
| [Ui] rated insulation voltage |
400 V depending on protective device 500 V depending on protective device |
| network frequency | 50/60 Hz |
| protection type | Without protection |
| tap-off unit disconnection mode | By drawing out |
| tap-off unit connector type | With phase selection |
| standards |
IEC 60439-2 IEC 61439-6 |
| number of 18mm modules | 8 |
| width | 434 mm |
| depth | 141 mm |
| height | 165 mm |
| net weight | 3.1 kg |
| earthing system |
TT - busbar trunking TN-S - busbar trunking TN-C - busbar trunking IT - busbar trunking TT - tap-off unit TN-S - tap-off unit IT - tap-off unit |
|---|---|
| IP degree of protection | IP55 conforming to IEC 60529 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 1.94 kg |
| Package 1 Height | 16.6 cm |
| Package 1 width | 17 cm |
| Package 1 Length | 43.5 cm |
| Unit Type of Package 2 | P12 |
| Number of Units in Package 2 | 33 |
| Package 2 Weight | 91.02 kg |
| Package 2 Height | 80 cm |
| Package 2 width | 80 cm |
| Package 2 Length | 120 cm |
| Sustainable offer status | Green Premium product |
|---|---|
| REACh Regulation | REACh Declaration |
| REACh free of SVHC | Yes |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Toxic heavy metal free | Yes |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope)
|
| Environmental Disclosure | Product Environmental Profile |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Halogen content performance | Halogen free product |
| Warranty | 18 months |
|---|
-
Canalis KN KNB32CP35
