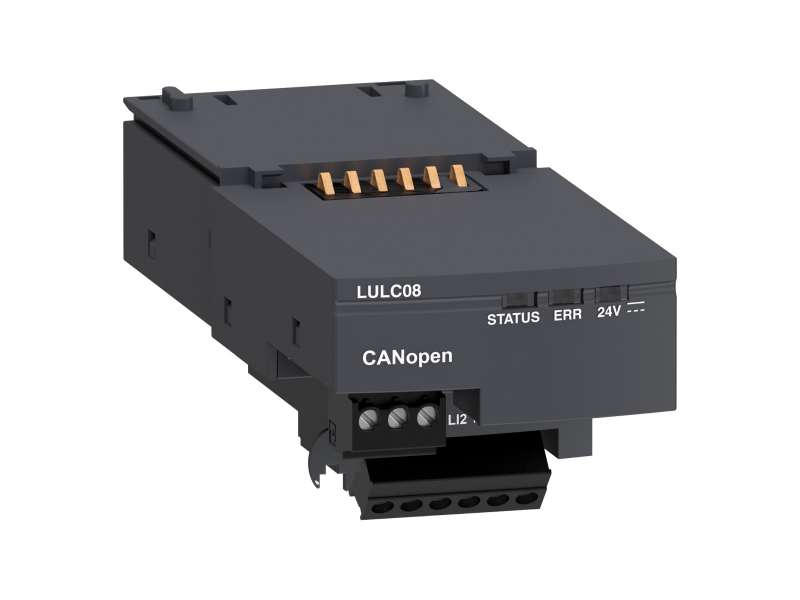

Schneider Electric CANopen komunikacioni modul - za TeSys U - 24 V DC
CANopen communication module, TeSys U, 24V DC supply...
VAT-exclusive price: 26.182,00 |
VAT-inclusive price: 31.418,40 |
CANopen communication module, TeSys U, 24V DC supply
| range | TeSys |
|---|---|
| device short name | LUL |
| Product or component type | Communication module |
| Product compatibility |
LUCA LUCL LUCD LUCC LUCM LUCB |
| Device application | Communication |
| range compatibility |
TeSys U LUB non reversing power base TeSys U LU2B reversing power base |
| main function available | Communication module |
|---|---|
| Mounting mode | Plug-in |
| Mounting location | Front side |
| physical interface | 9-way SUB-D female |
| bus type | CANopen |
| Communication port protocol |
CAN2.0A CAN2.B |
| addressing | 1...127 |
| current consumption | 1.5 mA at 24 V DC 20...28 V |
| logic input | Positive at 24 V DC - 7 mA |
| response time |
10 ms +/- 30 % change to state 0 10 ms +/- 30 % change to state 1 |
| input type | Resistive |
| number of outputs |
2 dedicated to starter-controller coil operation 1 |
| [Us] rated supply voltage | 24 V DC |
| Output current | <= 500 mA |
| Protection type | GL fuse 2 A |
| switching current capacity | 0.5 mA at 24 V |
| local signalling | 3 LEDs front panel |
| connection pitch | 3.81 mm |
| connections - terminals |
Screw clamp terminals 1 cable(s) 0.14…1 mm²flexible without cable end Screw clamp terminals 1 cable(s) 0.14…1 mm²rigid without cable end Screw clamp terminals 1 cable(s) 0.25…0.5 mm²flexible with cable end Screw clamp terminals 1 cable(s) 0.25…1 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.14…0.5 mm²rigid without cable end Screw clamp terminals 2 cable(s) 0.14…0.75 mm²flexible without cable end Screw clamp terminals 2 cable(s) 0.25…0.34 mm²flexible with cable end Screw clamp terminals 2 cable(s) 0.5 mm²flexible with cable end |
| associated cable type | AWG 26...AWG 16 |
| tightening torque | 0.2…0.25 N.m2.5 mm |
| standards |
DR 303-2 CIADS-301 V4.02 |
|---|---|
| Ambient air temperature for operation | -25…55 °C |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 104 g |
| Package 1 Height | 4.9 cm |
| Package 1 width | 4.9 cm |
| Package 1 Length | 11.3 cm |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 35 |
| Package 2 Weight | 4.03 kg |
| Package 2 Height | 15 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| REACh Regulation | REACh Declaration |
|---|---|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
| Mercury free | Yes |
| RoHS exemption information | Yes |
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Warranty | 18 months |
|---|
