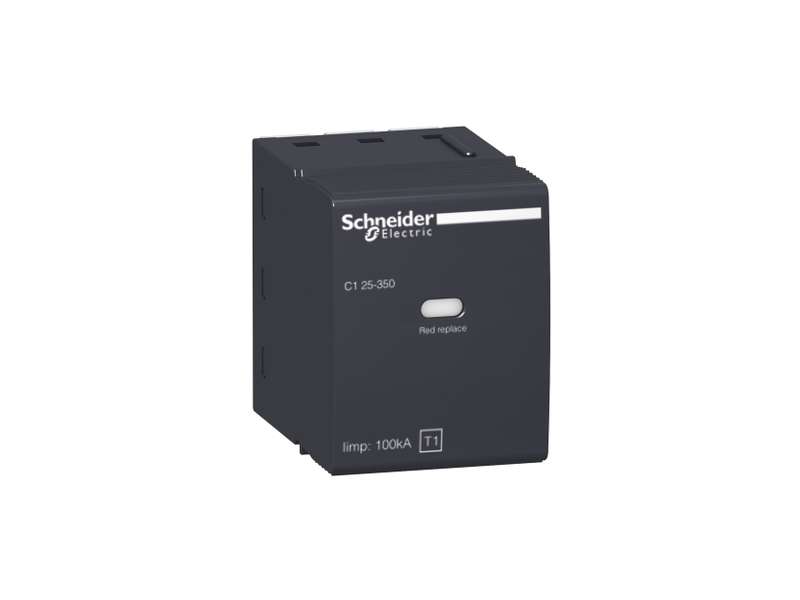

Schneider Electric Cartridge C1 Neutral-350 for surge arrester PRD1 25r and PRD1 Master;16317

cartridge C1 Neutral-350 for surge arrester PRD1 25r and PRD1 Master...

Brand: Schneider Electric
Product Code: 16317
Availability: Check availability

VAT-exclusive price: 30.572,00

VAT-inclusive price: 36.686,40

Qnt:

Description
Specification

cartridge C1 Neutral-350 for surge arrester PRD1 25r and PRD1 Master

Main
product or component type	Cartridge
device short name	C1 Neutral-350
surge arrester type	Electrical distribution network

Complementary
surge arrester class type	Type 1
surge arrester technology	Spark gap
earthing system	TN TT
[Ue] rated operational voltage	230 V AC 50 Hz
nominal discharge current	20 kA
[Uc] maximum continuous operating voltage	350 V
maximum [Up] voltage protection level	<1.5 kV type 1
[If] follow current	0.1 kA
mounting mode	Plug-in
mounting support	Into SPD module
9 mm pitches	4
height	50 mm
width	36 mm
depth	57 mm
colour	Anthracite grey (RAL 7016)
material	PBT (polybutylene terephthalate)
response time	< 100 ns

Environment
standards	IEC 61643-1 EN 61643-11
product certifications	KEMA-KEUR
IP degree of protection	IP20 front face:
relative humidity	5…90 %
operating altitude	0...2000 m
ambient air temperature for operation	-25…60 °C
ambient air temperature for storage	-40…80 °C

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	215.0 g
Package 1 Height	4.5 cm
Package 1 width	8.3 cm
Package 1 Length	11.0 cm
Unit Type of Package 2	S02
Number of Units in Package 2	35
Package 2 Weight	8.715 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm
Unit Type of Package 3	S03
Number of Units in Package 3	54
Package 3 Weight	13.933 kg
Package 3 Height	30.0 cm
Package 3 width	30.0 cm
Package 3 Length	40.0 cm
