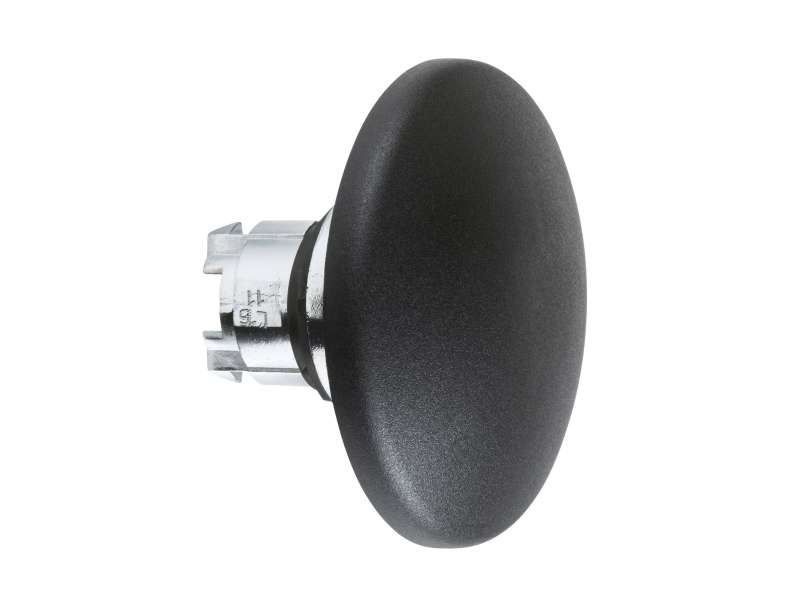

Schneider Electric Crna Ø60 pečurkasta glava tastera Ø22 sa povratkom;ZB4BR216
Mushroom push button head Ø60, metal, black, Ø22, spring return, hemispherical...
VAT-exclusive price: 2.759,00 |
VAT-inclusive price: 3.310,80 |
Mushroom push button head Ø60, metal, black, Ø22, spring return, hemispherical
| range of product |
Harmony XB4
|
|
|---|---|---|
| product or component type |
Head for non-illuminated push-button
|
|
| device short name |
ZB4
|
|
| bezel material |
Chromium plated metal
|
|
| mounting diameter |
22 mm
|
|
| sale per indivisible quantity |
1
|
|
| head type |
Standard
|
|
| shape of signaling unit head |
Hemispherical
|
|
| type of operator |
spring return
|
|
| operator profile |
Black mushroom Ø 60 mm, unmarked
|
| CAD overall width |
60 mm
|
|
|---|---|---|
| CAD overall height |
60 mm
|
|
| CAD overall depth |
45 mm
|
|
| mechanical durability |
5000000 cycles
|
|
| electrical composition code |
C11 for <3 contacts using single blocks in front mounting
C15 for <1 contacts using single blocks in front mounting C3 for <6 contacts using single blocks in front mounting C4 for <6 contacts using single and double blocks in front mounting |
|
| device presentation |
Basic element
|
| protective treatment |
TH
|
|
|---|---|---|
| ambient air temperature for storage |
-40…70 °C
|
|
| ambient air temperature for operation |
-40…70 °C
|
|
| overvoltage category |
Class I conforming to IEC 60536
|
|
| IP degree of protection |
IP66 conforming to IEC 60529
IP67 IP69 IP69K |
|
| NEMA degree of protection |
NEMA 13
NEMA 4X |
|
| IK degree of protection |
IK03 conforming to IEC 50102
|
|
| standards |
EN/IEC 60947-5-4
CSA C22.2 No 14 JIS C8201-5-1 EN/IEC 60947-5-1 UL 508 EN/IEC 60947-1 EN/IEC 60947-5-5 JIS C8201-1 |
|
| product certifications |
UL listed
RINA BV LROS (Lloyds register of shipping) GL CSA DNV |
|
| vibration resistance |
5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 18 ms) for half sine wave acceleration conforming to IEC 60068-2-27
50 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
70 g
|
|
| Package 1 Height |
7 cm
|
|
| Package 1 width |
7 cm
|
|
| Package 1 Length |
9 cm
|
|
| Unit Type of Package 2 |
S03
|
|
| Number of Units in Package 2 |
40
|
|
| Package 2 Weight |
3.349 kg
|
|
| Package 2 Height |
30 cm
|
|
| Package 2 width |
30 cm
|
|
| Package 2 Length |
40 cm
|
|
| Unit Type of Package 3 |
P06
|
|
| Number of Units in Package 3 |
320
|
|
| Package 3 Weight |
36.604 kg
|
|
| Package 3 Height |
77 cm
|
-
Harmony XB4 ZB4BR216
