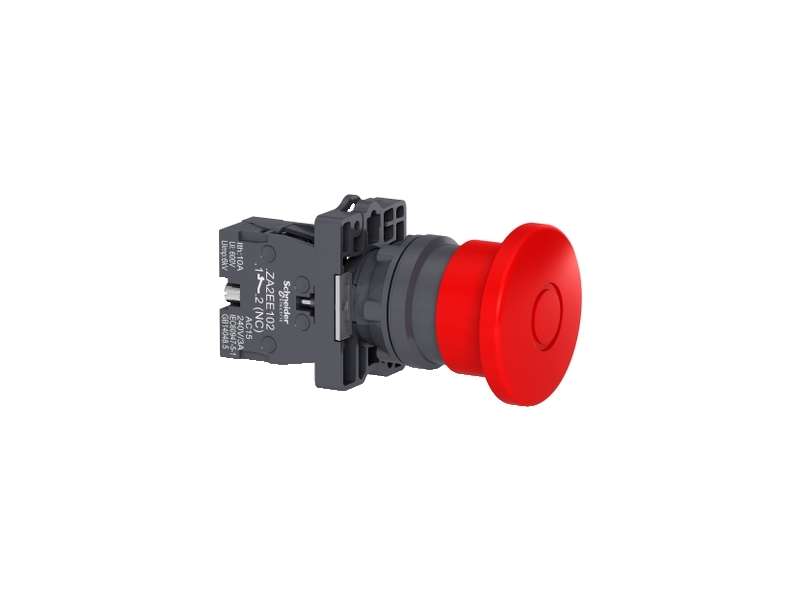

Schneider Electric Crveni Ø40 taster za nužno isključenje Ø22 bez okidanja - otpuštanje zakretanjem 1NC;XA2ES642
Emergency stop switching off, Easy Harmony XA2, plastic, red mushroom 40mm, 22mm, turn to release, 1NC...
VAT-exclusive price: 991,00 |
VAT-inclusive price: 1.189,20 |
Emergency stop switching off, Easy Harmony XA2, plastic, red mushroom 40mm, 22mm, turn to release, 1NC
| range of product | Easy Harmony XA2 |
|---|---|
| product or component type | Complete emergency switching off push-button |
| device short name | XA2 |
| bezel material | Plastic |
| mounting diameter | 22 mm |
| operating position | Any position |
|---|---|
| device mounting | Fixing hole - diameter: 22 mm |
| fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| fixing mode | Fixing nut: 2…2.4 N.m |
| shape of signaling unit head | Round |
| type of operator | Turn to release |
| reset | Turn to release |
| operator profile | Red mushroom Ø 40 mm |
| contacts type and composition | 1 NC |
| contact operation | Slow-break |
| positive opening | With NC contact |
| mechanical durability | 100000 cycles |
| connections - terminals |
Screw clamp terminal, <= 2 x 1.5 mm² Screw clamp terminal, <= 1 x 2.5 mm² Screw clamp terminal, >= 1 x 0.5 mm² Faston terminals, connection size: 6.3 mm |
| tightening torque | 0.8 N.m |
| short-circuit protection | 10 A gL fuse conforming to IEC 60269-1 |
| [Ith] conventional free air thermal current | 10 A |
| [Ui] rated insulation voltage | 600 V conforming to IEC 60947-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| [Ie] rated operational current |
3 A at 240 V, AC-15, A600 0.27 A at 250 V, DC-13, Q600 |
| electrical durability |
500000 cycles, AC-15, 3 A at 230 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 500000 cycles, DC-13, 0.2 A at 110 V, operating rate <60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-4 |
| electrical reliability | Λ < 10exp(-8) at 24 V |
| height | 30 mm |
| width | 42 mm |
| depth | 74.2 mm |
| net weight | 0.058 kg |
| protective treatment | TC |
|---|---|
| ambient air temperature for storage | -40…70 °C |
| ambient air temperature for operation | -25…55 °C |
| overvoltage category | Class I conforming to IEC 536 |
| IP degree of protection | IP65 conforming to IEC 60529 |
| IK degree of protection | IK03 conforming to IEC 60529 |
| standards |
IEC 60947-1 GB 14048.1 GB 14048.5 IEC 60947-5-1 |
| product certifications |
CCC CE |
| vibration resistance | 10 gn (f= 40…500 Hz) conforming to IEC 60068-2-6 |
| shock resistance | 70 gn (duration = 11 ms) for half sine wave acceleration conforming to IEC 60068-2-27 |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 57.0 g |
| Package 1 Height | 4.0 cm |
| Package 1 width | 5.0 cm |
| Package 1 Length | 7.0 cm |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 1120 |
| Package 2 Weight | 76.88 kg |
| Package 2 Height | 75.0 cm |
| Package 2 width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 70 |
| Package 3 Weight | 4.305 kg |
| Package 3 Height | 15.0 cm |
| Package 3 width | 30.0 cm |
| Package 3 Length | 40.0 cm |
