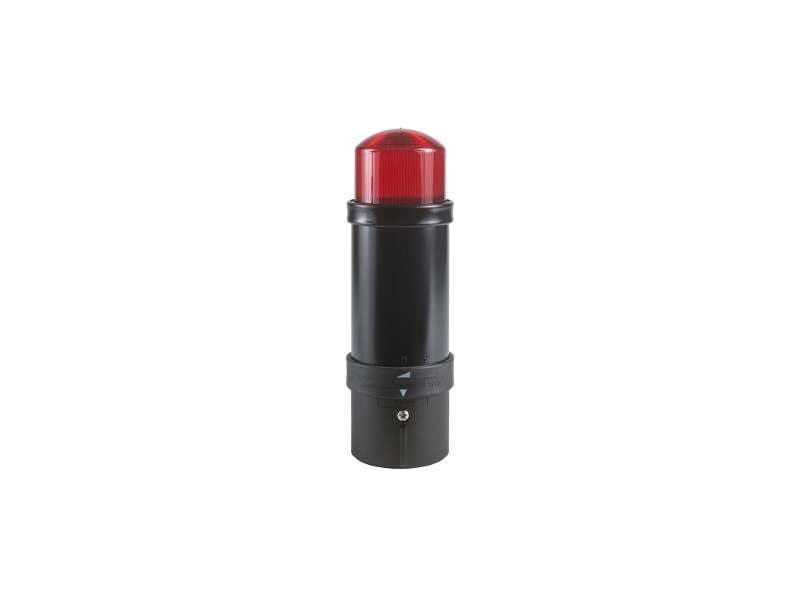

Schneider Electric Crveni svetlosni blok 5J,120V AC;XVBL6G4
Complete beacon, Harmony XVB Universal, red strobe 5 joule,120 V AC...
VAT-exclusive price: 32.633,00 |
VAT-inclusive price: 39.159,60 |
Complete beacon, Harmony XVB Universal, red strobe 5 joule,120 V AC
| range of product | Harmony XVB Universal |
|---|---|
| product or component type | Complete beacon |
| beacon or indicator bank unit type |
Base unit direct or tube fixing Illuminated unit |
| signalling type | Flashing |
| mounting diameter | 70 mm |
| component name | XVBL |
| material |
Glass reinforced polyamide: base unit Polycarbonate: illuminated unit |
| light source | Integral flash discharge tube, red |
| bulb type | Flash discharge tube |
| [Us] rated supply voltage | 120 V AC |
| connections - terminals | Screw clamp terminals, <= 1 x 1.5 mm² with cable end |
|---|---|
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| current consumption | < 140 mA AC |
| [Uimp] rated impulse withstand voltage | 4 kV conforming to IEC 60947-1 |
| flash energy | 5 J |
| flashing frequency | 1 Hz |
| CAD overall width | 70 mm |
| CAD overall height | 232 mm |
| CAD overall depth | 70 mm |
| terminals description ISO n°1 |
(GND)GROUND (COM-1)PW |
| net weight | 0.425 kg |
| product certifications |
CCC EAC CSA C22-2 No 14 UL 508 |
|---|---|
| standards | EN/IEC 60947-5-1 |
| protective treatment | TC |
| ambient air temperature for storage | -40…70 °C |
| electrical shock protection class |
Class I on support tube conforming to IEC 61140 Class II on base unit conforming to IEC 61140 |
| IP degree of protection |
IP65 on fixing base XVBZ0. conforming to IEC 60529 IP66 on base unit conforming to IEC 60529 |
| NEMA degree of protection | Type 4X conforming to UL (indoor) |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 417.0 g |
| Package 1 Height | 8.0 cm |
| Package 1 width | 8.0 cm |
| Package 1 Length | 25.2 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 12 |
| Package 2 Weight | 5.479 kg |
| Package 2 Height | 30.0 cm |
| Package 2 width | 30.0 cm |
| Package 2 Length | 40.0 cm |
| Warranty | 18 months |
|---|
