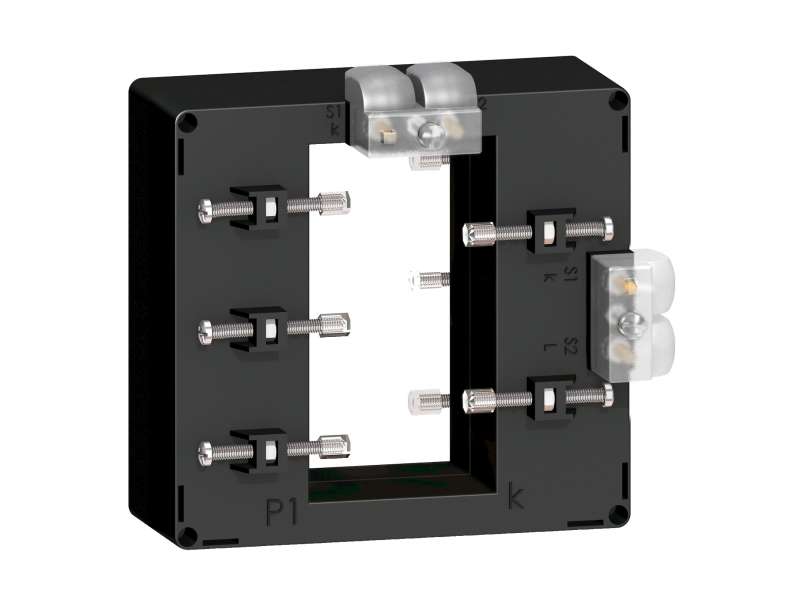

Schneider Electric Current transformer tropicalised 1250 5 double output for bars 54x102
current transformer tropicalised 1250 5 double output for bars 54x102...
VAT-exclusive price: 13.807,00 |
VAT-inclusive price: 16.568,40 |
current transformer tropicalised 1250 5 double output for bars 54x102
| range | PowerLogic |
|---|---|
| product name | CT |
| Product or component type | Current transformer |
| secondary current | 5 A |
| accuracy class |
Class 0.5 at 15 VA Class 1 at 20 VA |
| [In] rated current | 1250 A |
| current transformer type | Tropicalised for busbar |
|---|---|
| current transformer ratio | 1250/5 |
| [Ith] conventional free air thermal current | 60 kA |
| dynamic withstand current | 2.5 Ith |
| maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| [Ui] rated insulation voltage | 3 kV |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| width |
55 mm inner: 135 mm outside: |
| height |
129 mm outside: 103 mm inner: |
| depth |
50 mm frame: 85 mm total: |
| Net weight | 0.662 kg |
| [Uimp] rated impulse withstand voltage | 3 kV |
| Electrical insulation class | Class B |
| opening of bars | 102 x 54 |
| sealing | With |
| standards |
IEC 61869-2 VDE 0414 |
|---|---|
| Product certifications | CE |
| IP degree of protection | IP20 |
| relative humidity | 0…95 % |
| Ambient air temperature for operation | -25…50 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 728 g |
| Package 1 Height | 9.8 cm |
| Package 1 width | 13.6 cm |
| Package 1 Length | 17 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 10 |
| Package 2 Weight | 7.767 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|---|---|
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information
|
| Environmental Disclosure | Product Environmental Profile |
| Circularity Profile | End of Life Information |
| WEEE | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
-
