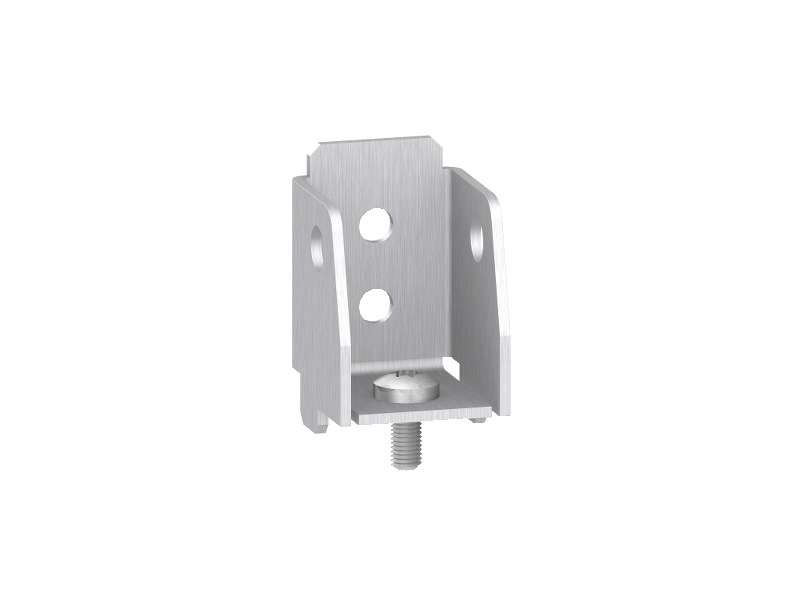

Schneider Electric Držač za interno fiksiranje vertikalnih šina na istom nivou konstrukcije;NSYMFB
Fixing brackets for internal fixing of vertical rails at the same level of base...
VAT-exclusive price: 3.782,00 |
VAT-inclusive price: 4.538,40 |
Fixing brackets for internal fixing of vertical rails at the same level of base
| range | Spacial |
|---|---|
| accessory / separate part category | Mounting accessory |
| product or component type | Fixing bracket |
| Anwendung | Multi-purpose |
| mounting support | Standard or technical uprights |
| range compatibility |
Spacial SF Spacial SM Spacial SD Spacial SFX Spacial SMX Spacial SDX |
| device composition |
Fixing elements 4 brackets for fixing uprights |
| quantity per set | Set of 1 |
| material | Steel |
| surface finish | Zinc coated |
|---|---|
| fixing mode | By screws - screw type M6 self tapping |
| adjustment | Adjustable in depth every 25 mm |
| height | 36 mm |
| width | 74 mm |
| depth | 144 mm |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 323.0 g |
| Package 1 Height | 4.5 cm |
| Package 1 width | 7.5 cm |
| Package 1 Length | 15 cm |
| Warranty | 18 months |
|---|
