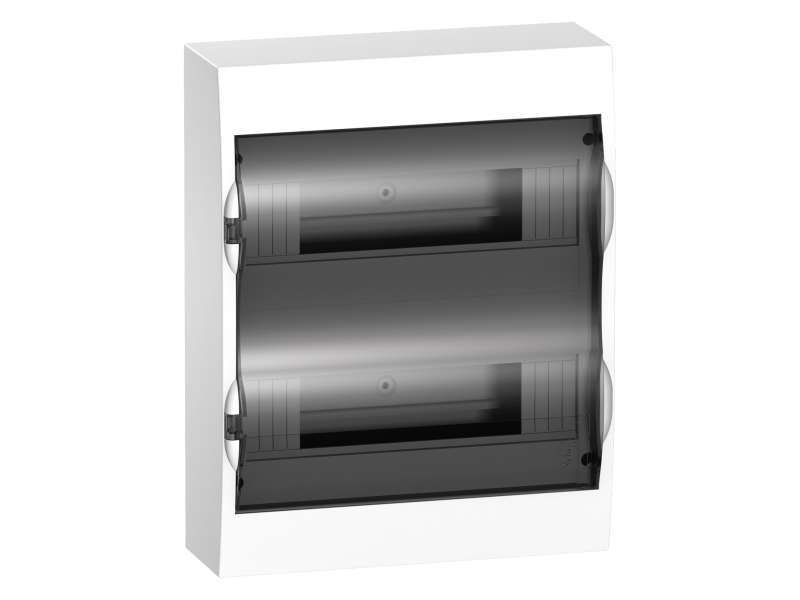

Schneider Electric Easy9 - nadgradna tabla 24 modula - zatamnjena vrata - sa E/N priklj. blokovima; EZ9E212S2S
Easy9 - surface enclosure 24 modules - smoked door - with E/N term.blocks...
VAT-exclusive price: 1.824,61 |
VAT-inclusive price: 2.189,53 |
Easy9 - surface enclosure 24 modules - smoked door - with E/N term.blocks
| range |
Easy9
|
|
|---|---|---|
| product or component type |
Enclosure
|
|
| enclosure type |
Modular enclosure
|
|
| Nb of 18 mm modules per row |
12
|
| enclosure mounting |
Surface
|
|
|---|---|---|
| 9 mm pitches |
24
|
|
| Nb of horizontal rows |
2
|
|
| total number of 18 mm modules |
24
|
|
| type of rail |
DIN
|
|
| type of installation |
Indoor
|
|
| terminal block function |
Earth / neutral
|
|
| number of terminal blocks |
2 earth / neutral (screwed) with 17 outgoers
|
|
| cable entry |
Knock-out cable entries
|
|
| Type of door |
Smoked
|
|
| door opening side |
Reversible (180 °)
|
|
| [In] rated current |
63 A
|
|
| [Ue] rated operational voltage |
400 V AC
|
|
| [Uimp] rated impulse withstand voltage |
2.5 kV
|
|
| [Ui] rated insulation voltage |
500 V
|
|
| enclosure material |
Enclosure: self-extinguishing plastic
|
|
| width |
256 mm outside:
|
|
| height |
326 mm outside:
|
|
| depth |
96 mm outside:
|
|
| colour |
White (RAL 9003)
|
|
| net weight |
1290 g
|
| standards |
IEC 60670-1-24
|
|
|---|---|---|
| fire resistance |
650 °C ( 1800 s ) conforming to IEC 60695-2-10
|
|
| IP degree of protection |
IP40 conforming to IEC 60529 (closed door)
IP30 conforming to IEC 60529 (open door) |
|
| IK degree of protection |
IK07 conforming to IEC 62262
|
|
| pollution degree |
2
|
|
| ambient air temperature for operation |
-5…60 °C
|
|
| ambient air temperature for storage |
-15…70 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.147 kg
|
|
| Package 1 Height |
9.5 cm
|
|
| Package 1 width |
25.5 cm
|
|
| Package 1 Length |
33 cm
|
|
| Package 2 Weight |
6.78 kg
|
|
| Package 3 Weight |
96 kg
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Product out of China RoHS scope. Substance declaration for your information |
|
| Environmental Disclosure | ||
| Halogen content performance |
Halogen free product
|
-
