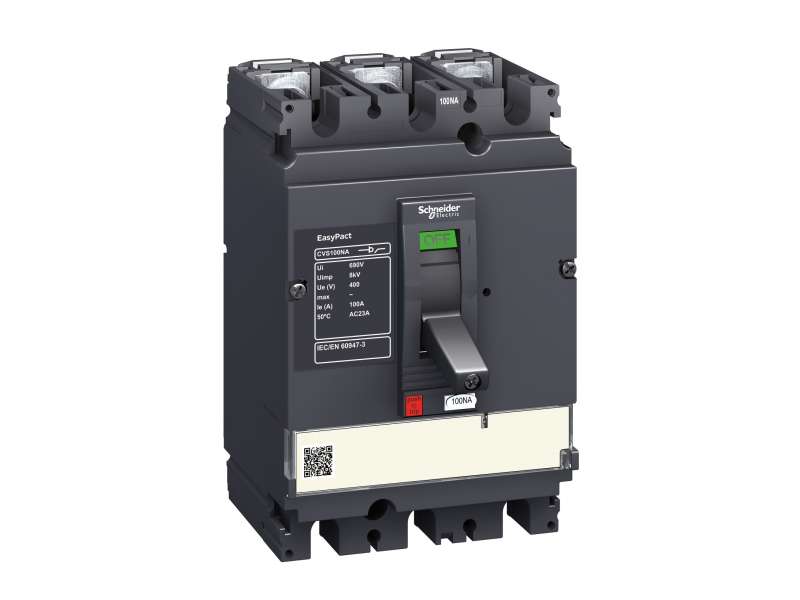

Schneider Electric Easypact CVS - CVS160NA rastavljač - 160 A - 3P;LV516425
Switch disconnector EasyPact CVS160NA, 3 poles, 160 A, AC22A, AC23A...
VAT-exclusive price: 12.184,00 |
VAT-inclusive price: 14.620,80 |
Switch disconnector EasyPact CVS160NA, 3 poles, 160 A, AC22A, AC23A
| range of product |
Easypact CVS100...250
|
|
|---|---|---|
| range |
EasyPact
|
|
| product name |
EasyPact CVS
|
|
| device short name |
CVS160NA
|
|
| product or component type |
Switch disconnector
|
|
| device application |
Distribution
|
|
| poles description |
3P
|
|
| network type |
AC
|
|
| [Ie] rated operational current |
AC-22A: 160 A AC 50/60 Hz 220/240 V
AC-22A: 160 A AC 50/60 Hz 380/415 V AC-22A: 160 A AC 50/60 Hz 440 V AC-23A: 160 A AC 50/60 Hz 220/240 V AC-23A: 160 A AC 50/60 Hz 380/415 V AC-23A: 160 A AC 50/60 Hz 440 V |
|
| [Ith] conventional free air thermal current |
160 A at 50 °C
|
|
| [Icm] rated short-circuit making capacity |
75 kA with upstream protection circuit breaker
3.6 kA switch-disconnector alone |
|
| breaking capacity code |
NA
|
|
| suitability for isolation |
Yes conforming to EN 60947-3
Yes conforming to IEC 60947-3 |
|
| utilisation category |
AC-23A
AC-22A |
|
| earth-leakage protection |
Without
|
| network frequency |
50/60 Hz
|
|
|---|---|---|
| control type |
Toggle
|
|
| mounting mode |
Fixed
|
|
| mounting support |
Backplate
|
|
| upside connection |
Front
|
|
| downside connection |
Front
|
|
| [Icw] rated short-time withstand current |
0.96 kA during 20 s conforming to IEC 60947-3
2.5 kA during 1 s conforming to IEC 60947-3 2.5 kA during 3 s conforming to IEC 60947-3 |
|
| contact position indicator |
Yes
|
|
| visible break |
No
|
|
| mechanical durability |
25000 cycles conforming to IEC 60947-3
|
|
| electrical durability |
AC-22A: 8000 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3
AC-23A: 8000 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3 |
|
| connection pitch |
35 mm
|
|
| height |
161 mm
|
|
| width |
105 mm
|
|
| depth |
86 mm
|
|
| net weight |
2.2 kg
|
| standards |
IEC 60947-3
EN 60947-3 |
|
|---|---|---|
| product certifications |
IEC
GOST |
|
| electrical shock protection class |
Class II
|
|
| pollution degree |
3 conforming to IEC 60664-1
|
|
| ambient air temperature for operation |
-25…70 °C
|
|
| ambient air temperature for storage |
-50…85 °C
|
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
1.776 kg
|
|
| Package 1 Height |
11.5 cm
|
|
| Package 1 width |
14 cm
|
|
| Package 1 Length |
19 cm
|
-
EasyPact CVS LV516425
