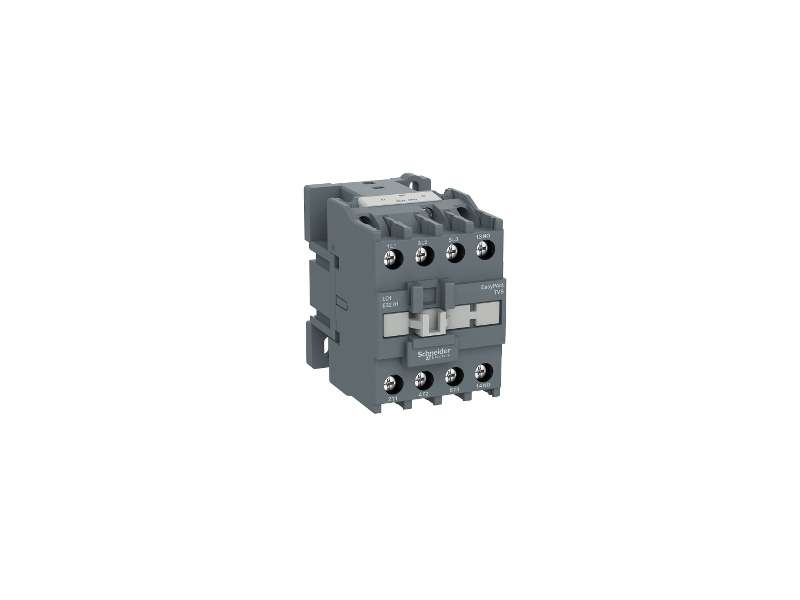

Schneider Electric EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 38A - 24 V AC coil;LC1E3810B7
EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 38A - 24 V AC coil...
VAT-exclusive price: 8.009,00 |
VAT-inclusive price: 9.610,80 |
EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 38A - 24 V AC coil
| range | EasyPact |
|---|---|
| product name | EasyPact TVS |
| product or component type | Contactor |
| device short name | LC1E |
| contactor application |
Motor control Resistive load |
| utilisation category |
AC-1 AC-3 |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current |
50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| motor power kW |
18.5 kW at 500 V 18.5 kW at 660...690 V 9 kW at 220...230 V AC 50/60 Hz 18.5 kW at 380...400 V 18.5 kW at 415 V 18.5 kW at 440 V |
| control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| height | 84 mm |
| width | 56 mm |
| depth | 86 mm |
| net weight | 0.45 kg |
| colour | Grey (RAL 7011) |
| auxiliary contact composition | 1 NO |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| [Ith] conventional free air thermal current | 50 A (at 55 °C) |
| Irms rated making capacity | 380 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| rated breaking capacity | 304 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current |
60 A 40 °C - 600 s for power circuit 310 A 40 °C - 10 s for power circuit 150 A 40 °C - 60 s for power circuit |
| associated fuse rating |
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 63 A gG at <= 690 V coordination type 1 for power circuit |
| average impedance | 2.5 mOhm - Ith 50 A 50 Hz for power circuit |
| power dissipation per pole |
2.9 W AC-3 5 W AC-1 |
| control circuit voltage limits |
Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C) Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) |
| operating time |
12...22 ms on closing 4...19 ms on opening |
| mechanical durability | 8000000 cycles |
| maximum operating rate | 1800 cyc/h 60 °C |
| inrush power in VA |
95 VA 50 Hz cos phi 0.75 (at 20 °C) 95 VA 60 Hz cos phi 0.75 (at 20 °C) |
| hold-in power consumption in VA |
8.3 VA 50 Hz cos phi 0.3 (at 20 °C) 8.5 VA 60 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 2…3 W for control circuit |
| minimum switching current | 5 mA for control circuit |
| minimum switching voltage | 17 V for control circuit |
| non-overlap time |
1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| insulation resistance | > 10 MOhm for control circuit |
| electrical durability |
350000 cycles AC-1 900000 cycles AC-3 |
| mounting support |
DIN rail Plate |
| connections - terminals |
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end |
| Recommended tightening torque |
Control circuit: 1.2 N.m Power circuit: 2.1 N.m |
| Max tightening torque |
Control circuit: 1.4 N.m Power circuit: 2.3 N.m |
| standards |
IEC 60947-5-1 IEC 60947-4-1 IEC 60947-1 |
|---|---|
| product certifications |
EAC CE |
| IP degree of protection | IP2x conforming to IEC 60529 |
| protective treatment | TH (pollution degree 3) conforming to IEC 60068-2-30 test Db |
| pollution degree | 3 |
| ambient air temperature for operation | -5…55 °C |
| ambient air temperature for storage | -60…80 °C |
| permissible ambient air temperature around the device | -20…70 °C at Uc |
| operating altitude | 3000 m without derating |
| fire resistance | 850 °C conforming to IEC 60695-2-1 |
| mechanical robustness |
Vibrations contactor open: 1.5 Gn, 5...300 Hz Vibrations contactor closed: 3 Gn, 5...300 Hz Shocks contactor closed: 10 Gn for 11 ms Shocks contactor open: 6 Gn for 11 ms |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 450.0 g |
| Package 1 Height | 8.6 cm |
| Package 1 width | 5.6 cm |
| Package 1 Length | 8.4 cm |
| range | EasyPact |
|---|---|
| product name | EasyPact TVS |
| product or component type | Contactor |
| device short name | LC1E |
| contactor application |
Motor control Resistive load |
| utilisation category |
AC-1 AC-3 |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current |
50 A (at <55 °C) at <= 440 V AC AC-1 for power circuit 38 A (at <60 °C) at <= 440 V AC AC-3 for power circuit |
| motor power kW |
18.5 kW at 500 V 18.5 kW at 660...690 V 9 kW at 220...230 V AC 50/60 Hz 18.5 kW at 380...400 V 18.5 kW at 415 V 18.5 kW at 440 V |
| control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| height | 84 mm |
| width | 56 mm |
| depth | 86 mm |
| net weight | 0.45 kg |
| colour | Grey (RAL 7011) |
| auxiliary contact composition | 1 NO |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| [Ith] conventional free air thermal current | 50 A (at 55 °C) |
| Irms rated making capacity |
