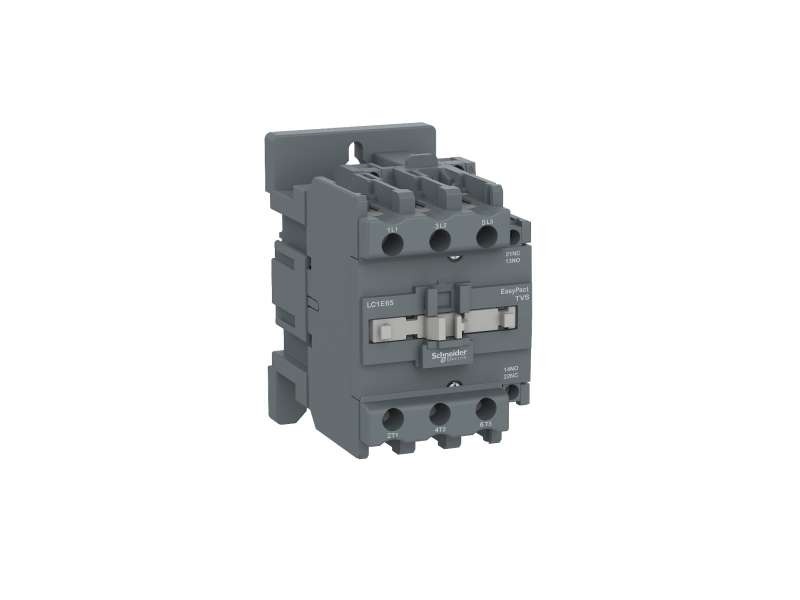

EasyPact TVS contactor 3P(3 NO) - AC-3 - <= 440 V 50A - 24 V AC coil
| range | EasyPact |
|---|---|
| product name | EasyPact TVS |
| product or component type | Contactor |
| device short name | LC1E |
| contactor application |
Resistive load Motor control |
| utilisation category |
AC-1 AC-3 |
| poles description | 3P |
| power pole contact composition | 3 NO |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current |
50 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 70 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| motor power kW |
15 kW at 220...230 V AC 50/60 Hz 22 kW at 380...400 V 25 kW at 415 V 30 kW at 440 V 30 kW at 500 V 33 kW at 660...690 V |
| control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 24 V AC 50/60 Hz |
| height | 127 mm |
| width | 75 mm |
|---|---|
| depth | 114 mm |
| net weight | 0.98 kg |
| colour |
Grey (RAL 7011) |
| auxiliary contact composition | 1 NO + 1 NC |
|---|---|
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| overvoltage category | III |
| Irms rated making capacity | 500 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| rated breaking capacity | 400 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current |
400 A 40 °C - 10 s for power circuit 208 A 40 °C - 60 s for power circuit 84 A 40 °C - 600 s for power circuit |
| associated fuse rating |
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 100 A gG at <= 690 V coordination type 1 for power circuit |
| average impedance | 1.5 mOhm - Ith 70 A 50 Hz for power circuit |
| power dissipation per pole |
3.8 W AC-3 7.4 W AC-1 |
| control circuit voltage limits |
Operational: 0.85...1.1 Uc at 50/60 Hz (at <55 °C) Drop-out: 0.3...0.6 Uc at 50/60 Hz (at <55 °C) |
| operating time |
20...26 ms on closing 8...12 ms on opening |
| mechanical durability | 5000000 cycles |
| maximum operating rate | 1200 cyc/h 60 °C |
| inrush power in VA |
160 VA 50 Hz cos phi 0.75 (at 20 °C) 140 VA 60 Hz cos phi 0.75 (at 20 °C) |
| hold-in power consumption in VA |
15 VA 50 Hz cos phi 0.3 (at 20 °C) 13 VA 60 Hz cos phi 0.3 (at 20 °C) |
| heat dissipation | 6…10 W for control circuit |
| minimum switching current | 5 mA for control circuit |
| minimum switching voltage | 17 V for control circuit |
| non-overlap time |
1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |
| insulation resistance | > 10 MOhm for control circuit |
| electrical durability |
350000 cycles AC-1 900000 cycles AC-3 |
| mounting support |
DIN rail Plate |
| connections - terminals |
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 2.5…25 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5…16 mm² - cable stiffness: solid without cable end |
| Recommended tightening torque |
Control circuit: 1.2 N.m Power circuit: 5 N.m |
| Max tightening torque |
Control circuit: 1.4 N.m Power circuit: 5.8 N.m |
