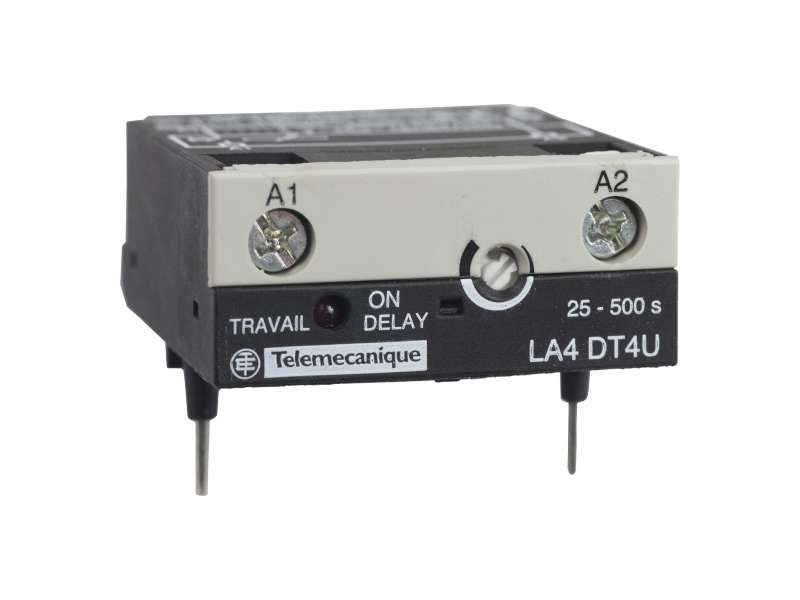

Schneider Electric Elektronski tajmer - vrsta kašnjenja 25...500 s - 24...250 V DC/AC;LA4DT4U
Electronic timer module - type on delay 25...500 s - 24...250 V DC/AC...
VAT-exclusive price: 7.197,00 |
VAT-inclusive price: 8.636,40 |
Electronic timer module - type on delay 25...500 s - 24...250 V DC/AC
| range |
TeSys
|
|
|---|---|---|
| product or component type |
Serial timer modules
|
|
| device short name |
LA4DT
|
|
| poles description |
3P
|
|
| product compatibility |
4 poles LC1DT20...DT40
3 poles LC1D09...D38 |
| mounting location |
Top
|
|
|---|---|---|
| [Uc] control circuit voltage |
24...250 V AC 50/60 Hz
24...250 V DC |
|
| control circuit voltage limits |
By mechanical contact: 0.8...1.1 Uc
|
|
| [Ui] rated insulation voltage |
250 V conforming to IEC 60947-1
|
|
| connections - terminals |
Control circuit: connector 1 cable(s) 1 mm²flexible with cable end
Control circuit: connector 1 cable(s) 1 mm²solid with cable end Control circuit: connector 2 cable(s) 2.5 mm²flexible without cable end Control circuit: connector 2 cable(s) 2.5 mm²solid without cable end |
|
| electrical durability |
30 Mcycles
|
|
| timer type |
On delay
|
|
| time delay range |
25...500 s
|
|
| reset time |
150 ms during time delay
50 ms after time delay |
|
| local signalling |
Illuminates during time delay by LED
|
|
| [Ures] residual voltage |
3.3 V
|
|
| net weight |
0.04 kg
|
| standards |
IEC 60255-5
|
|
|---|---|---|
| product certifications |
UL
CSA |
|
| IP degree of protection |
IP2x conforming to VDE 0106
|
|
| protective treatment |
TH conforming to IEC 60068
|
|
| ambient air temperature for operation |
-25…55 °C
|
|
| permissible ambient air temperature around the device |
-25…70 °C
|
|
| ambient air temperature for storage |
-40…80 °C
|
|
| protection type |
Built-in by varistor
|
|
| heat dissipation |
2 W at 50/60 Hz
|
|
| immunity to microbreaks |
10 ms during time delay
2 ms after time delay |
| Unit Type of Package 1 |
PCE
|
|
|---|---|---|
| Number of Units in Package 1 |
1
|
|
| Package 1 Weight |
50 g
|
|
| Package 1 Height |
4 cm
|
|
| Package 1 width |
4.8 cm
|
|
| Package 1 Length |
5 cm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| REACh free of SVHC |
Yes
|
|
| EU RoHS Directive |
Compliant
EU RoHS Declaration |
|
| Toxic heavy metal free |
Yes
|
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| China RoHS Regulation |
China RoHS declaration
Pro-active China RoHS declaration (out of China RoHS legal scope) |
|
-
TeSys D LA4DT4U
