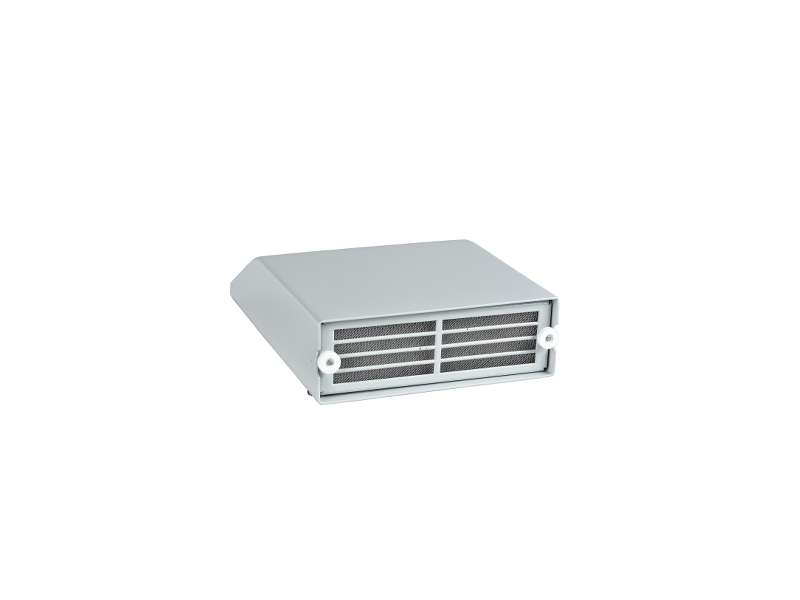

Schneider Electric EMC cover cut-out 291x291 with filter IP55; NSYCAP291LE
EMC cover cut-out 291x291 with filter IP55...
Price on request
EMC cover cut-out 291x291 with filter IP55
| Range | ClimaSys |
|---|---|
| Product name | ClimaSys CA |
| Product or component type | EMC sealing cover |
| accessory / separate part category | Thermal management accessory |
| Mounting location | On enclosure |
|---|---|
| Fixing mode | By screws |
| Range compatibility |
ClimaSys (ClimaSys CV) EMC fan Prisma (Prisma P) |
| Device composition |
1 cover 1 filter |
| Material | Painted steel |
| Colour | Grey (RAL 7035) |
| Cut-out dimensions | 291 x 291 mm |
| Height | 430 mm external: |
| Width | 373 mm external: |
| Depth | 105 mm external: |
| IP degree of protection | IP54 |
|---|
| Unit Type of Package 1 | Db |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 37 cm |
| Package 1 Length | 55 cm |
| Package 1 Weight | 4.37 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 85 cm |
| Package 2 Width | 100 cm |
| Package 2 Length | 120 cm |
| Package 2 Weight | 113 kg |
| Warranty | 18 months |
|---|
