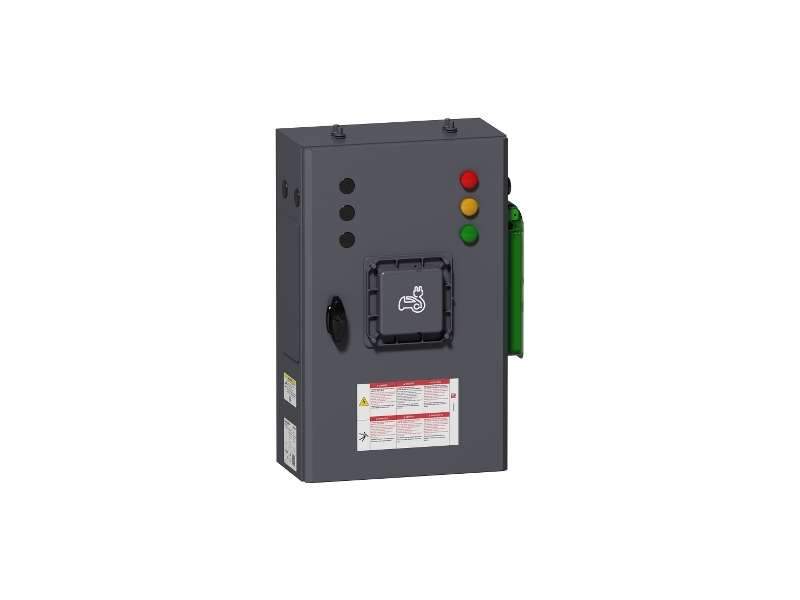

Schneider Electric EVlink Parking rezervna oprema - Sivo kućište 22kW T2-TF RFID; EVP2PE222FR
EVlink Parking Spare Part Enclosure Grey 22kW T2-TF RFID...
VAT-exclusive price: 417.869,51 |
VAT-inclusive price: 501.443,41 |
EVlink Parking Spare Part Enclosure Grey 22kW T2-TF RFID
| Range | EVlink |
|---|---|
| Product name | EVlink parking |
| Product or component type | Enclosure |
| Device short name | EVP2 |
| range compatibility |
EVlink (EVlink parking) EVF2 charging station EVlink (EVlink parking) EVW2 charging station |
| poles description |
3P + N for power circuit 1P + N for control circuit |
| Mounting mode |
Wall-mounted Floor-standing |
| Offer type | Standard |
| rated supply voltage |
230 V AC 50/60 Hz control circuit 380...415 V AC 50/60 Hz power circuit |
| Earthing system |
TN IT TT |
| socket-outlet number | 2 |
| socket-outlet type |
Left side: T2 / silver plated contacts Right side: TF / silver plated contacts |
| maximum supply current |
32 A for T2 10 A for TF |
| Max power |
22 kW for T2 2.3 kW for TF |
| access control system |
Badge RFID conforming to ISO/IEC 14443 Badge RFID conforming to ISO/IEC 15693 |
| control type |
2 red push-button, function: stop 2 green illuminated push-button, function: start/unlock flap |
|---|---|
| local signalling |
On charge: 2 LED (green) (flashing) on side Available: 2 LED (green) on front Reserved: 2 LED (orange) on front Not operational: 2 LED (red) on front |
| web server | Embedded |
| Ethernet service | Configuration via web server |
| Height | 625 mm |
| Width | 400 mm |
| Depth | 206 mm |
| Net weight | 20 kg |
| colour | Grey (RAL 7016) |
| IP degree of protection |
IP54 off load conforming to IEC 61851-1 IP54 on load conforming to IEC 61851-1 |
|---|---|
| IK degree of protection |
IK10 charging station conforming to IEC 61851-22 IK10 socket-outlet: T2 conforming to IEC 61851-22 IK08 socket-outlet: TF conforming to IEC 61851-22 |
| ambient air temperature for operation | -25…40 °C conforming to IEC 61851-22 |
| Ambient air temperature for storage | -40…80 °C |
| operating altitude | 0...2000 m conforming to IEC 61851-22 |
| Relative humidity | 0…95 % |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 25.0 cm |
| Package 1 Width | 50.0 cm |
| Package 1 Length | 70.0 cm |
| Package 1 Weight | 19.5 kg |
| Unit Type of Package 2 | P06 |
| Number of Units in Package 2 | 2 |
| Package 2 Height | 50.0 cm |
| Package 2 Width | 80.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 47.5 kg |
