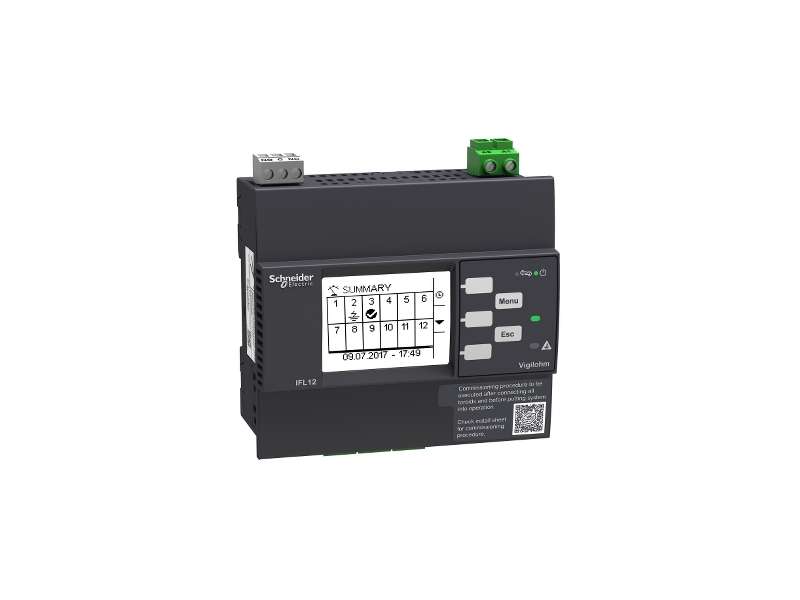

Schneider Electric Firmware upgrade using ION Setup for IMD and IFL devices;IMDIFL12C
VIGILOHM 12 CHANNEL FAULT LOCATOR WITH MODBUS - 100-440VAC/DC...
VAT-exclusive price: 71.057,00 |
VAT-inclusive price: 85.268,40 |
VIGILOHM 12 CHANNEL FAULT LOCATOR WITH MODBUS - 100-440VAC/DC
| range | Vigilohm |
|---|---|
| device short name | IFL12C |
| product or component type | Insulation fault locator |
| device application |
Standard environment application Marine application |
| electrical circuit type | Medium or low disturbed network |
| electrical circuit type | Power circuit |
| earthing system | IT |
| user language |
Portuguese Russian Chinese French Spanish Italian German English |
| network rated voltage |
0…1000 V - AC at 45...65 Hz 0…1000 V - DC |
|---|---|
| Number of channels | 12 |
| local signalling |
Yellow indicator light: insulation fault Yellow flashing indicator light: communication Green/red indicator light: product status Green indicator light: satisfactory insulation Yellow flashing indicator light: transient fault |
| threshold setting | Alarm: high, medium, low |
| alarm per channel | Alarm threshold: common to all feeders |
| response time | <= 5 s |
| auxiliary supply voltage |
100...440 V DC +/- 15 % 100...440 V AC 45...65 Hz +/- 15 % |
| power consumption in VA | 26 VA |
| power consumption in W | 10 W |
| test function |
Auto test at start and every 5h Remote test Manual |
| output contact | 1 C/O standard or fail-safe |
| breaking capacity |
250 V - AC at 6 A 48 V - DC at 1 A |
| communication port protocol | Modbus |
| communication port support | RS485 |
| display type | Digital display |
| mounting mode |
Flush-mounted Clip-on |
| mounting support |
DIN rail Panel |
| mounting position |
Horizontal Vertical |
| connections - terminals |
Power supply: removable screw terminal block0.2…2.5 mm² Output relay: removable screw terminal block0.2…2.5 mm² Toroids inputs: removable screw terminal block0.2…1.5 mm² Communication: removable screw terminal block0.2…2.5 mm² |
| material | Thermoplastic |
| overvoltage category | III |
| net weight | 0.5 kg |
| cut-out dimensions | 92 x 104 mm |
| height | 110 mm |
| width | 108 mm |
| depth | 59 mm |
| IP degree of protection |
Case: IP20 Front face: IP54 |
|---|---|
| environmental characteristic |
Exposure to damp heat not in service conforming to IEC 60068-2-30 Exposure to damp heat in service conforming to IEC 60068-2-56 Salt mist conforming to IEC 60068-2-52 |
| operating altitude | <= 3000 m |
| pollution degree | 2 |
| relative humidity | 5…92 % |
| type of installation | Indoor |
| standards |
IEC 60364-4-41 IEC 61010-1 IEC 60364-5-51 IEC 61557-9 |
| product certifications |
EAC CE DNV-GL UL cULus |
| ambient air temperature for operation | -25…55 °C |
| ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Weight | 550.0 g |
| Package 1 Height | 9.7 cm |
| Package 1 width | 18.2 cm |
| Package 1 Length | 13.5 cm |
| Unit Type of Package 2 | S03 |
| Number of Units in Package 2 | 8 |
| Package 2 Weight | 5.2 kg |
| Package 2 Height | 30 cm |
| Package 2 width | 30 cm |
| Package 2 Length | 40 cm |
