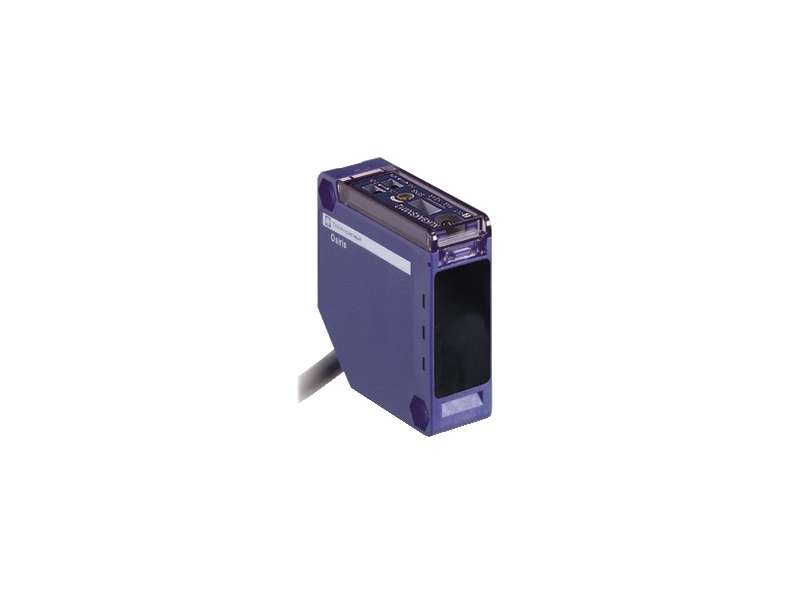

Schneider Electric Fotoelektrični laserski senzor - XUK - BGS - Sn 1m - 12..24VDC - M12;XUK8AKSNM12

Photoelectric sensors XU, photo electric laser sensor, XUK, BGS, Sn 1 m, 12...24 VDC, M12...

Brand: Schneider Electric
Product Code: XUK8AKSNM12
Availability: Check availability

VAT-exclusive price: 14.183,00

VAT-inclusive price: 17.019,60

Qnt:

Description
Specification

Photoelectric sensors XU, photo electric laser sensor, XUK, BGS, Sn 1 m, 12...24 VDC, M12

Main
range of product	Telemecanique Photoelectric sensors XU
series name	General purpose single mode
electronic sensor type	Photo-electric sensor
sensor name	XUK
sensor design	Compact 50 x 50
detection system	Diffuse with background suppression
material	Plastic
type of output signal	Discrete
supply circuit type	DC
wiring technique	3-wire
discrete output type	PNP or NPN
discrete output function	1 NO or 1 NC programmable
electrical connection	1 male connector M12, 4 pins
product specific application	-
emission	Infrared laser, modulated diffuse with background suppression class 1
[Sn] nominal sensing distance	1 m diffuse with background suppression

Complementary
enclosure material	PC
lens material	PMMA
maximum sensing distance	1 m diffuse with background suppression
minimum object diameter for detection	2 mm
output type	Solid state
wire insulation material	PVC
status LED	1 LED (yellow) for output state 1 LED (green) for supply
[Us] rated supply voltage	12...24 V DC with reverse polarity protection
supply voltage limits	10…36 V DC
switching capacity in mA	<= 100 mA (overload and short-circuit protection)
switching frequency	<= 250 Hz
maximum voltage drop	<1.5 V (closed state)
current consumption	<= 30 mA no-load
maximum delay first up	300 ms
maximum delay response	2 ms
maximum delay recovery	2 ms
setting-up	Sensitivity adjustment by potentiometer
depth	50 mm
height	50 mm
width	18 mm
net weight	0.035 kg
kit composition	With XUZA51 bracket fixing

Environment
product certifications	CE Ecolab
ambient air temperature for operation	-20…60 °C
ambient air temperature for storage	-30…70 °C
vibration resistance	7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
shock resistance	30 gn (duration = 11 ms) conforming to IEC 60068-2-27
IP degree of protection	IP65 double insulation conforming to IEC 60529

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Weight	126.0 g
Package 1 Height	4.0 cm
Package 1 width	6.0 cm
Package 1 Length	10.0 cm
Unit Type of Package 2	S02
Number of Units in Package 2	30
Package 2 Weight	4.265 kg
Package 2 Height	15.0 cm
Package 2 width	30.0 cm
Package 2 Length	40.0 cm

Contractual warranty
Warranty	18 months
