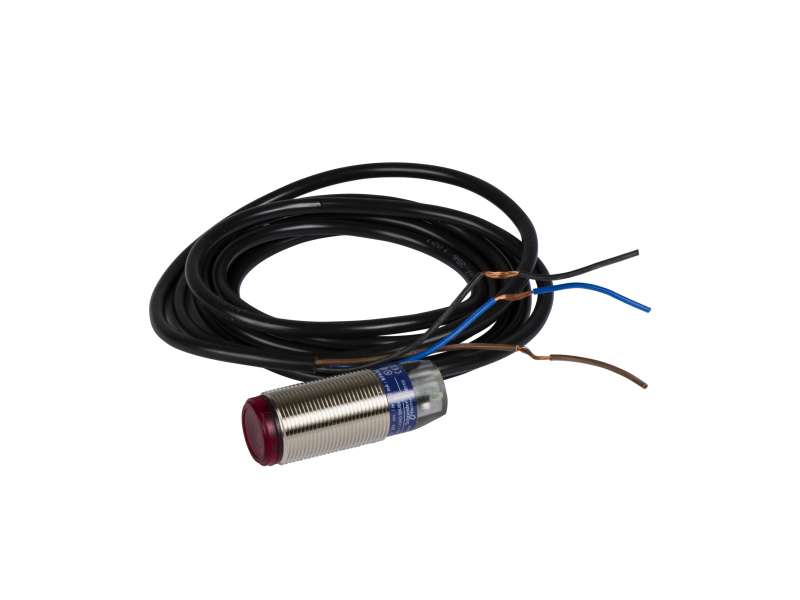

Schneider Electric Fotoelektrični senzor - XUB - difuzni - Sn 0.1m - 12..24VDC - kabl 2m ; XUB4BNANL2
photo-electric sensor - XUB - diffuse - Sn 0.1m - 12..24VDC - cable 2m...
VAT-exclusive price: 8.637,00 |
VAT-inclusive price: 10.364,40 |
photo-electric sensor - XUB - diffuse - Sn 0.1m - 12..24VDC - cable 2m
| range of product |
OsiSense XU
|
|
|---|---|---|
| series name |
General purpose single mode
|
|
| electronic sensor type |
Photo-electric sensor
|
|
| sensor name |
XUB
|
|
| sensor design |
Cylindrical M18
|
|
| detection system |
Diffuse
|
|
| material |
Metal
|
|
| line of sight type |
Axial
|
|
| type of output signal |
Discrete
|
|
| supply circuit type |
DC
|
|
| wiring technique |
3-wire
|
|
| discrete output type |
NPN
|
|
| discrete output function |
1 NO
|
|
| electrical connection |
Cable
|
|
| cable length |
2 m
|
|
| product specific application |
-
|
|
| emission |
Infrared diffuse
|
|
| [Sn] nominal sensing distance |
0.1 m diffuse
|
| enclosure material |
Nickel plated brass
|
|
|---|---|---|
| lens material |
PMMA
|
|
| maximum sensing distance |
0.15 m diffuse
|
|
| output type |
Solid state
|
|
| add on output |
Without
|
|
| wire insulation material |
PvR
|
|
| status LED |
1 LED (yellow) for output state
|
|
| [Us] rated supply voltage |
12...24 V DC with reverse polarity protection
|
|
| supply voltage limits |
10…36 V DC
|
|
| switching capacity in mA |
<= 100 mA (overload and short-circuit protection)
|
|
| switching frequency |
<= 500 Hz
|
|
| maximum voltage drop |
<1.5 V (closed state)
|
|
| current consumption |
35 mA no-load
|
|
| maximum delay first up |
15 ms
|
|
| maximum delay response |
1 ms
|
|
| maximum delay recovery |
1 ms
|
|
| setting-up |
Without sensitivity adjustment
|
|
| diameter |
18 mm
|
|
| length |
60 mm
|
|
| net weight |
0.05 kg
|
| product certifications |
UL
CE CSA |
|
|---|---|---|
| ambient air temperature for operation |
-25…55 °C
|
|
| ambient air temperature for storage |
-40…70 °C
|
|
| vibration resistance |
7 gn, amplitude = +/- 1.5 mm (f = 10…55 Hz) conforming to IEC 60068-2-6
|
|
| shock resistance |
30 gn (duration = 11 ms) conforming to IEC 60068-2-27
|
|
| IP degree of protection |
IP67 double insulation conforming to IEC 60529
IP65 double insulation conforming to IEC 60529 |
| Package 1 Weight |
0.112 kg
|
|
|---|---|---|
| Package 1 Height |
0.420 dm
|
|
| Package 1 width |
0.970 dm
|
|
| Package 1 Length |
1.320 dm
|
| Sustainable offer status |
Green Premium product
|
|
|---|---|---|
| REACh Regulation | ||
| EU RoHS Directive |
Pro-active compliance (Product out of EU RoHS legal scope)
EU RoHS Declaration |
|
| Mercury free |
Yes
|
|
| RoHS exemption information | ||
| Environmental Disclosure | ||
| Circularity Profile |
| Warranty |
18 months
|
|---|
